Overhead Cranes
The electric double girder overhead crane has the characteristics of high load-bearing capacity, smooth operation, precise control, etc. It complies with CE/ISO standards and supports customized solutions.
Product Description

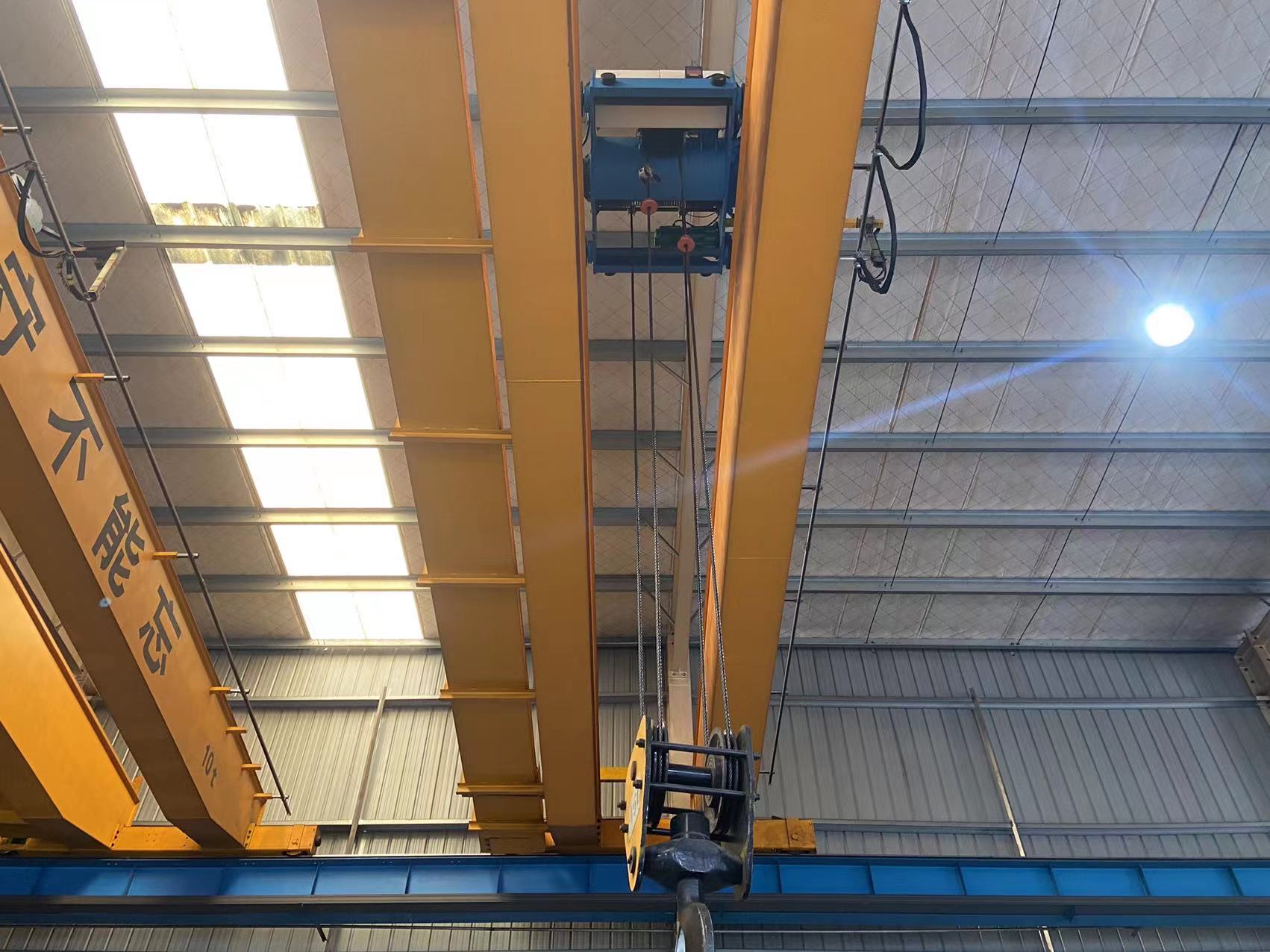

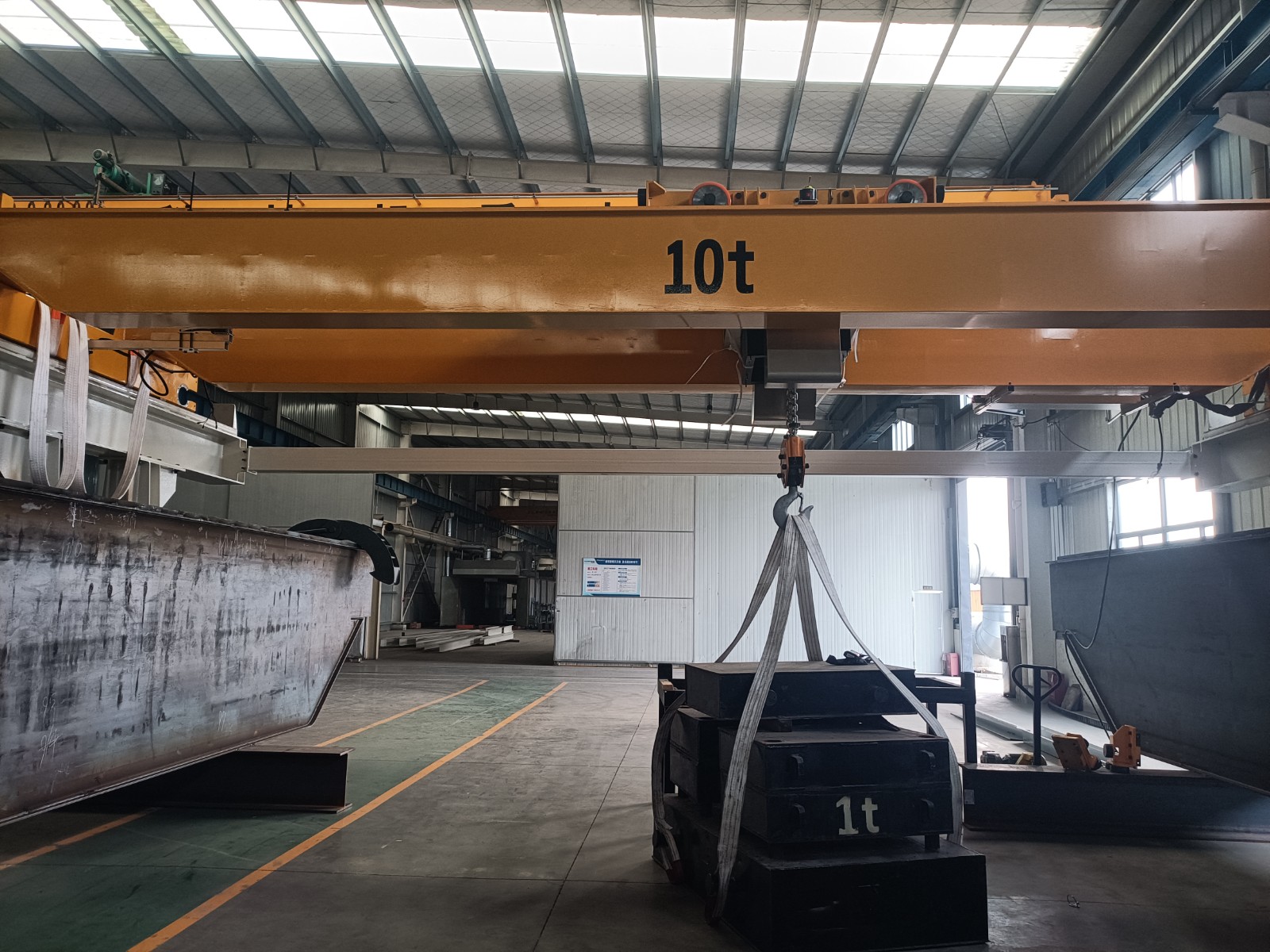

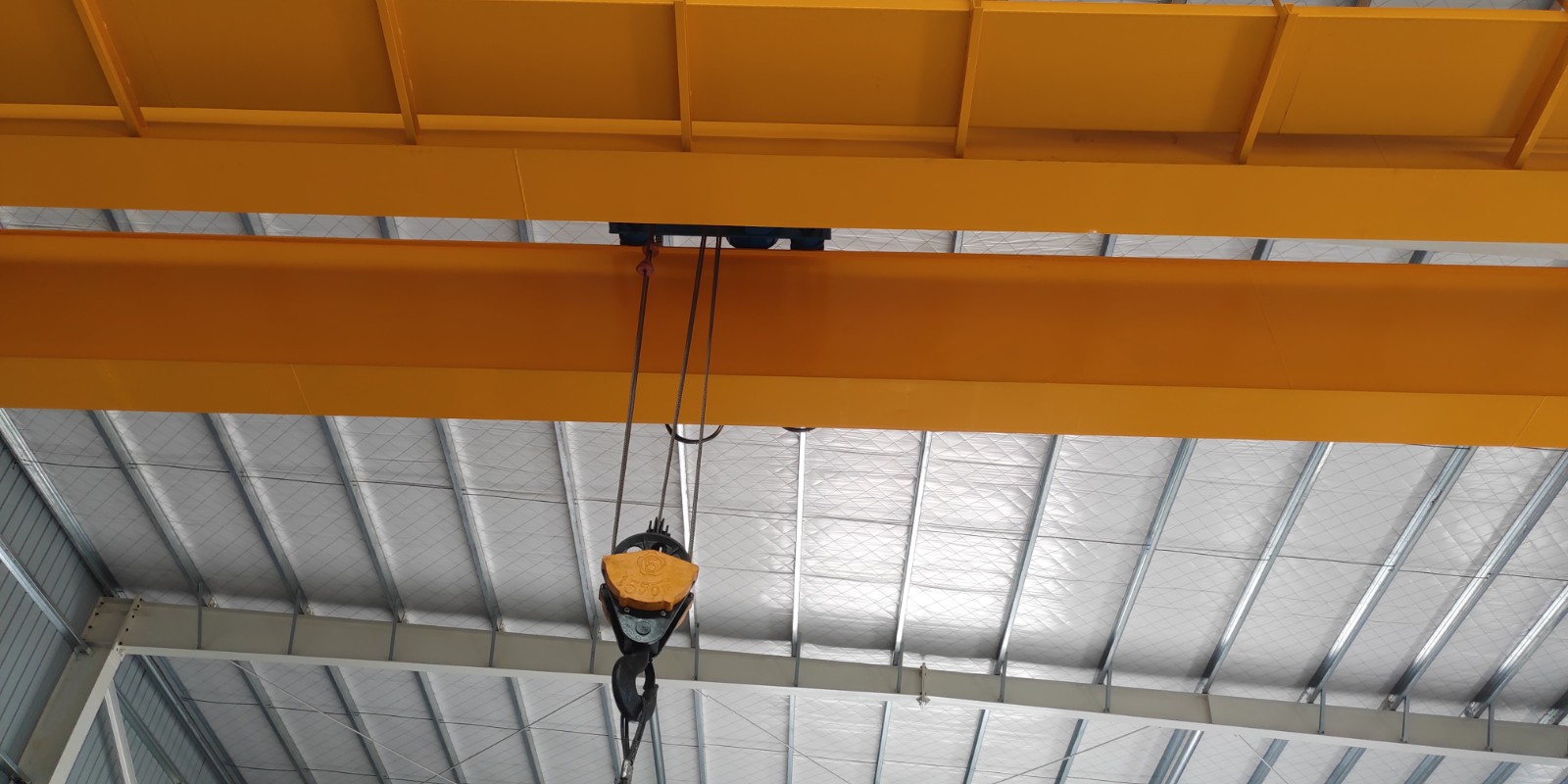

Electric double girder overhead crane is a high-performance lifting equipment widely used in heavy-load material handling occasions. It has a stable structure and strong carrying capacity. It is suitable for various industrial environments such as industrial and mining enterprises, metallurgical workshops, warehousing and logistics, machinery manufacturing, papermaking and construction industries. The equipment consists of two main beams and is equipped with an electric hoist trolley. It can accurately position and lift materials above the workshop to achieve efficient and accurate lifting operations.
Main Structural Components of Double Girder Overhead Crane
● Double main beam structure: Welded with high-quality steel, suitable for lifting large or heavy workpieces.
● Lifting mechanism: Includes key components such as motor, reducer, brake and wire rope (or chain).
● Operating mechanism: Bridge travel trolley operation.
● Track system: Installed on the upper track of the factory building, with wide coverage and stable operation.
● Control mode: Optional ground button control and remote control, support variable frequency speed regulation and automation system integration.
Main Features of Electric Double Girder Overhead Crane
● The lifting capacity can reach 5 tons, 10 tons, 20 tons, 50 tons or even higher, meeting the handling needs of heavy-duty occasions.
● Made of high-strength steel, equipped with overload protection, limit device, emergency brake and other safety systems.
● Optional PLC control system to achieve automatic operation, with fault self-diagnosis function, more convenient maintenance.
● Span, lifting height, running speed and control method can be customized according to customer needs.
● The modular structure design facilitates maintenance and replacement of parts and extends the service life of the equipment.
Technical Parameters (For Reference)
● Lifting capacity: 5 tons to 50 tons
● Span: 6 meters to 25 meters (customization supported)
● Lifting height: 5 meters to 20 meters (customization supported)
● Lifting speed: 3 to 8 m/min
● Trolley running speed: 15 to 30 m/min
● Control mode: wired ground control / wireless remote control
● Power supply voltage: 380V / 50Hz (customization supported)
Typical Application Scenarios
● Manufacturing: Production lines in the automotive, machinery, electronics and other industries
● Logistics and warehousing: Cargo loading and unloading in large warehouses
● Energy industry: Power plant, substation equipment installation and maintenance
● Metallurgical industry: Raw material handling in steel plants and aluminum plants
● Construction engineering: Prefabricated component lifting
KUNFENG can provide non-standard customized solutions according to the specific needs of customers to ensure that the lifting system perfectly matches the on-site working conditions, and provide strong support for customers to improve production efficiency and ensure operation safety. Please feel free to contact our technical team at any time to provide you with the most suitable lifting design solution.
