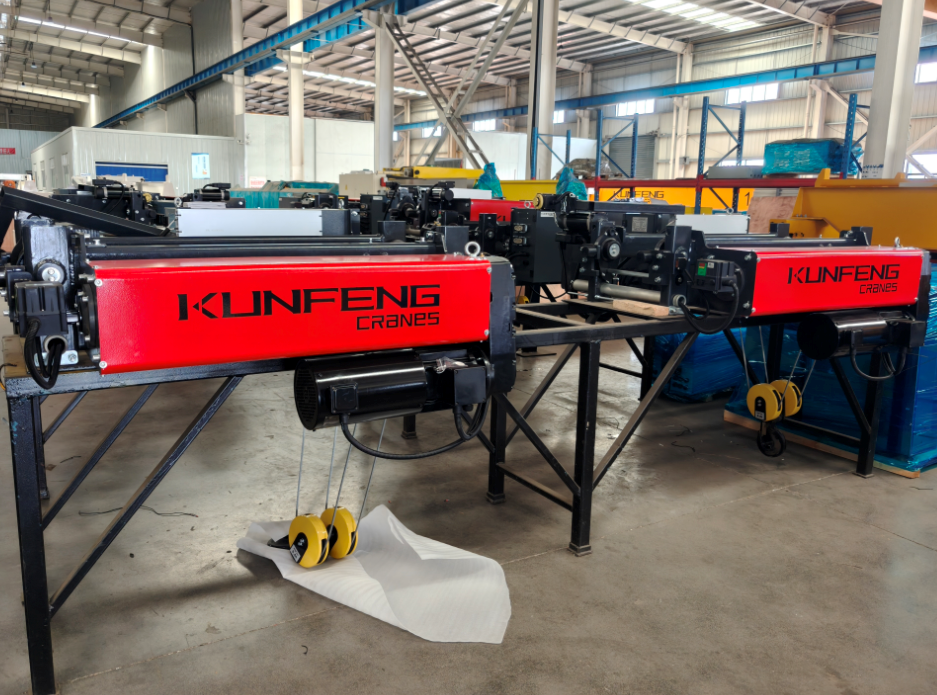

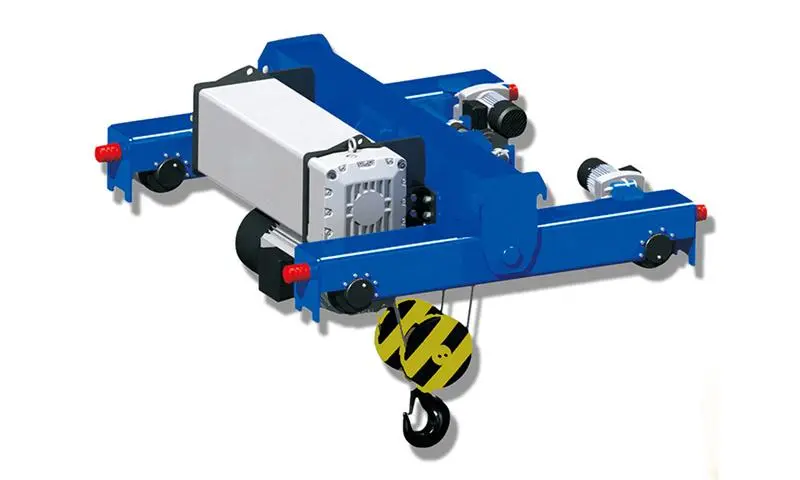

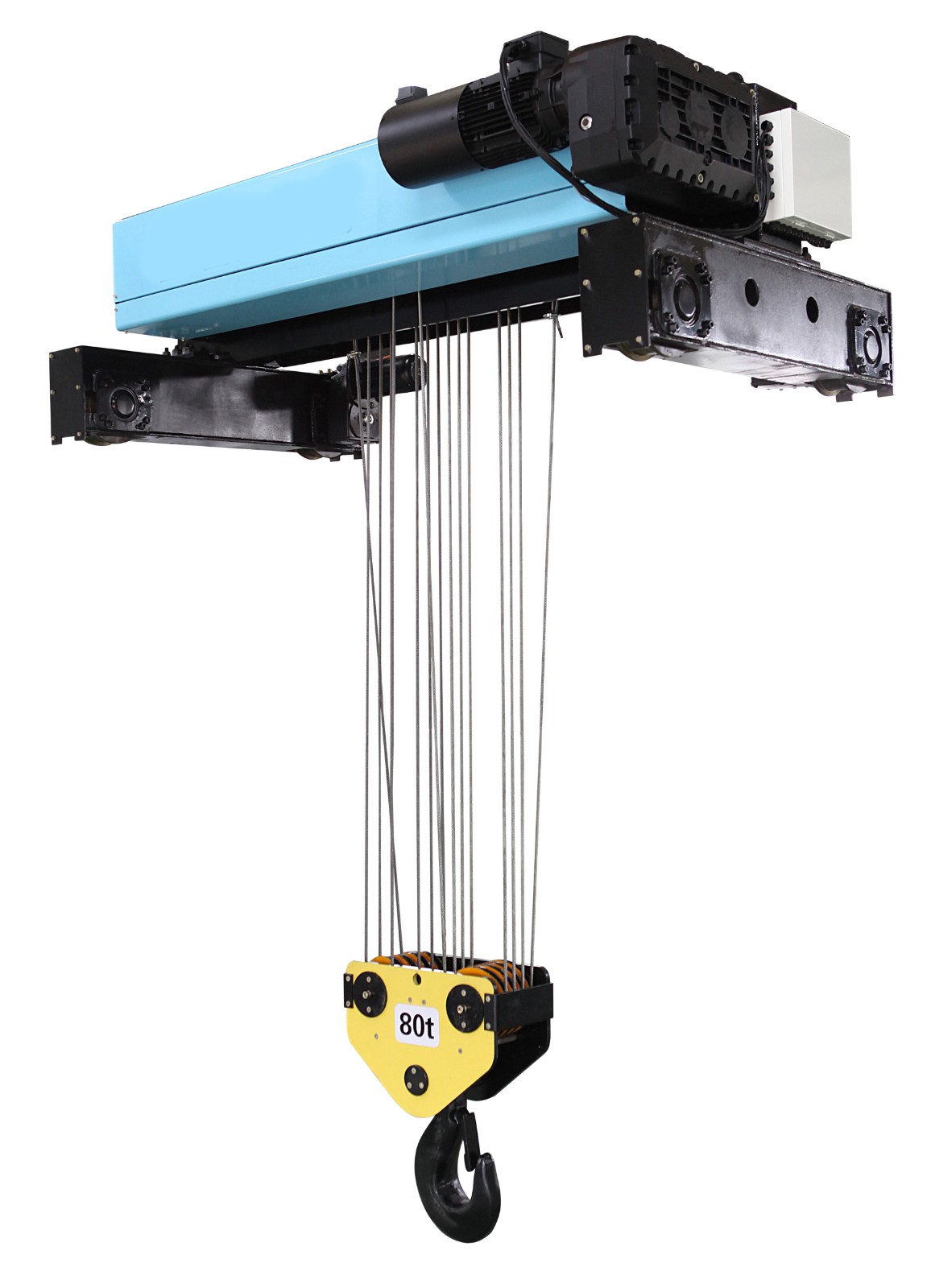

Electric Wire Rope Hoist with Trolley

Product Description

The electric wire rope hoist with trolley is a light-to-medium-duty lifting device that combines a wire rope hoist mechanism with a rigid trolley travel system. It is suitable for heavy-load and medium-to-high-frequency lifting operations. Compared to electric chain hoists, wire rope hoists are more suitable for larger lifting loads and longer lifting heights within the same size. The accompanying trolley can travel smoothly on the main beam, enabling lateral handling and positioning.

Core Advantages of Electric Wire Rope Hoists

  ● The wire rope hoist structure is suitable for large-tonnage designs and provides a large safety margin.

  ● The gearbox provides reliable deceleration and braking, and wire rope wear is more manageable, making it suitable for continuous and heavy-load operations.

  ● The trolley travel mechanism is compact, ensuring smooth starting and stopping, and precise positioning, ensuring safe operation.

  ● It is often equipped with limit switches, overload protection, emergency stop, and safety buffers.

  ● The modular design of key components makes maintenance simple and convenient, and reduces the cost of subsequent replacement parts.

  ● The load capacity, lifting height, travel speed, control method, and protection level can all be customized.

Technical Specifications (Customizable)

  ● Rated Lift Capacity: 1t - 100t

  ● Lifting Height: 5m - 20m

  ● Trolley Travel Speed: 1m - 3m/min

  ● Lifting Speed: 3m/min - 10m/min

  ● Control Method: Remote Control

  ● Power Supply: 380V/50Hz, 3-Phase

  ● Duty Class: M3, M4, M5

  ● Applicable Track: I-Beam/I-Steel

Product Selection Recommendations

  ● For applications requiring long lift heights and large tonnage: Prefer a wire rope hoist over a chain type.

  ● For high-frequency, short-stroke operations: Choose a hoist with variable speed control and soft start to reduce shock and extend service life.

  ● For humid/corrosive operating environments: Choose stainless steel or corrosion-resistant treatment for critical components, and improve the electrical protection level.

  ● For integration with production line automation: Confirm the PLC/communication interface and signal definitions in advance, and reserve installation space.

Need to select the appropriate wire rope hoist for your application or request a quote? Please provide: rated load, lifting height, span, track information, operating frequency and installation environment. We will provide you with detailed product information and free customized design solutions.
