Overhead Cranes
Designed for efficient material handling, our electric single girder overhead traveling crane range from 1-20 tons, feature variable frequency control, are CE/ISO certified, and offer custom options!
Product Description

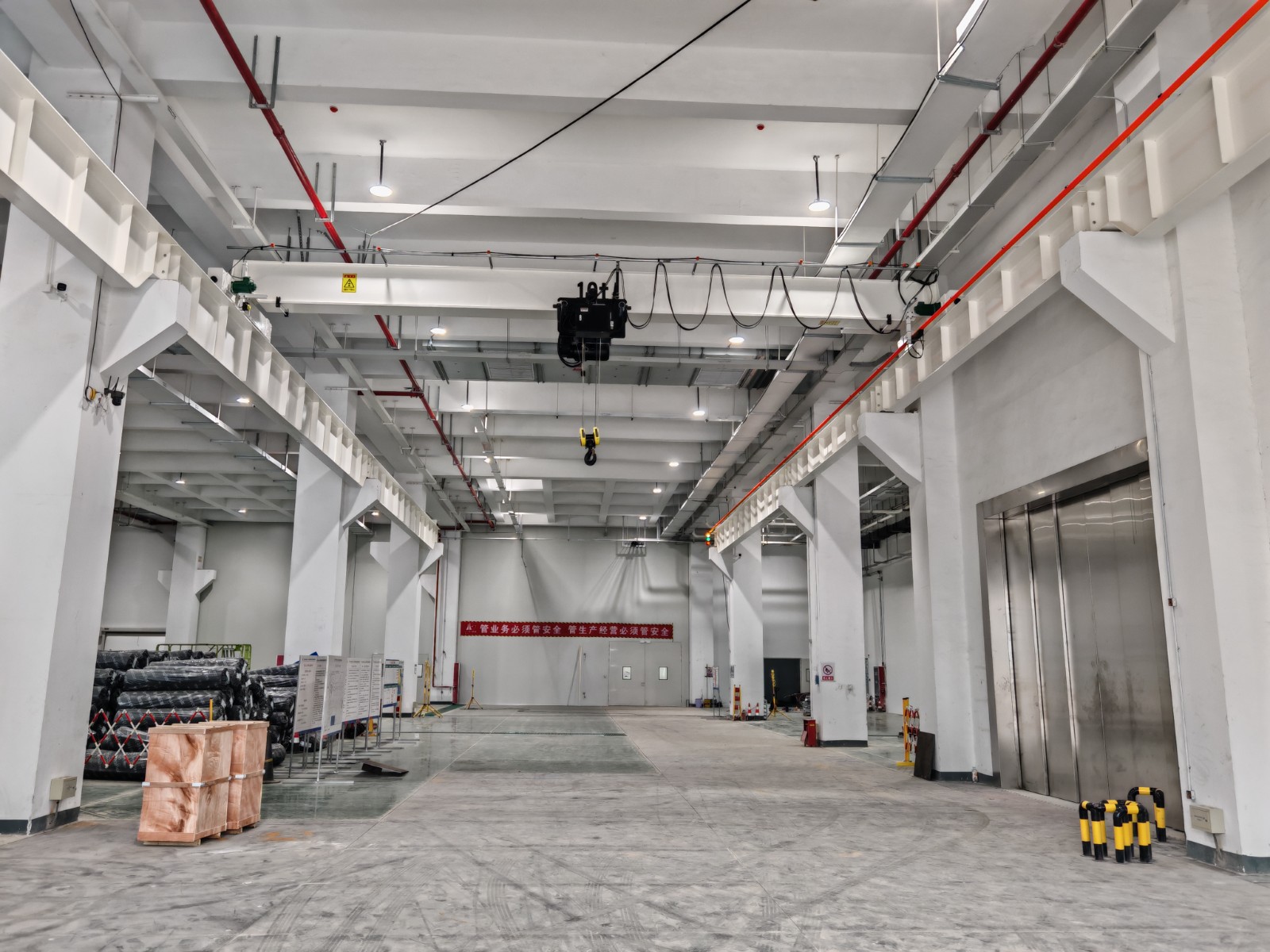

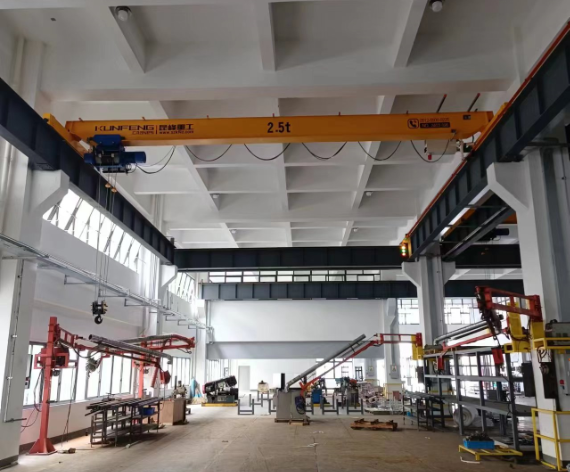

Electric single girder overhead traveling crane adopts a single main beam structure, bridge-type walking mode, and is equipped with an electric hoist for lifting materials on the upper track in the workshop. Compared with double girder bridge cranes, single girder structures are lightweight and cost-effective, suitable for light and medium load environments. This crane is widely used in manufacturing, assembly, warehousing, maintenance and other scenarios, providing efficient and safe material handling solutions for production and logistics.
Advantages of Electric Single Girder Traveling Crane
● The single-beam design has a low deadweight, relatively small load-bearing requirements on the upper part of the plant, and lower installation and maintenance costs.
● Suitable for production workshops, storage areas, assembly lines, etc. with light and medium loads.
● High-quality motors and reduction mechanisms are used, combined with variable frequency speed regulation, to achieve smooth start and stop and precise positioning.
● According to the customer's workshop height, span, load distribution and specific process requirements, a complete non-standard solution design is provided.
● The structural design is simple and the main components are reasonably arranged, which is convenient for daily inspection and maintenance.
Technical Parameters (For Reference)
● Lifting capacity: 0.5 tons to 20 tons
● Span: 5 meters to 20 meters
● Lifting height: 3 meters to 12 meters
● Lifting speed: single speed or double speed (2~8 m/min)
● Trolley running speed: 10~30 m/min
● Power supply: 380V/50Hz (three-phase)
● Control mode: button control/remote control
● Track: H-beam or I-beam
Typical Application Scenarios
● Manufacturing plant: assembly line, mechanical handling.
● Warehousing and logistics: cargo loading and unloading, pallet movement.
● Automobile and metal processing: component lifting and positioning.
● Light industrial facilities: maintenance, repair and production support.
We can provide comprehensive design, manufacturing, installation and after-sales service according to customer site conditions and needs. If you need a detailed technical solution or get a quote, please contact our technical team, we will provide you with a tailor-made material lifting solution.
