Turnover Lifting Beam for Rotating Steel Slab

Product Description

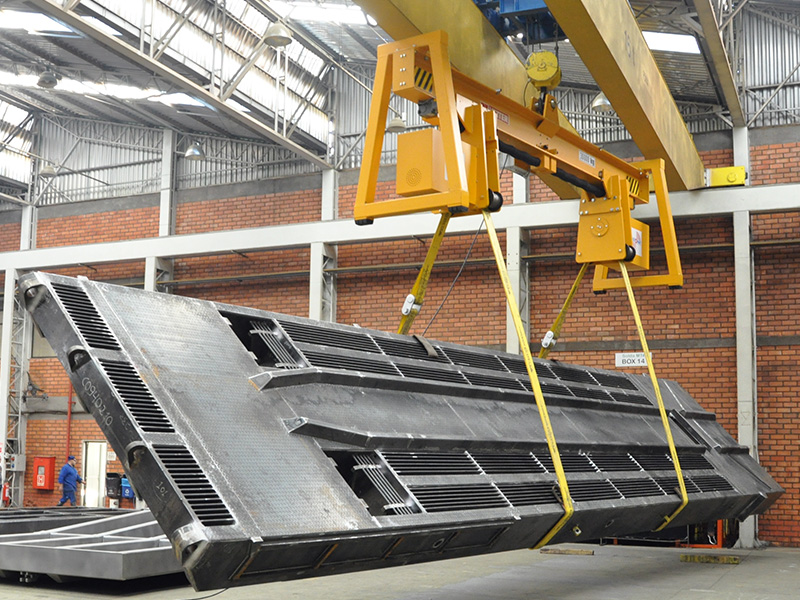

The turnover lifting beam smoothly turns large or irregular steel slab within a 0 - 360° range, ensuring uniform stress, preventing deformation, and achieving high-precision positioning. It is designed for the turning needs of steel slab and sheet metal workpieces during cutting, welding, inspection, flanging, and assembly processes.

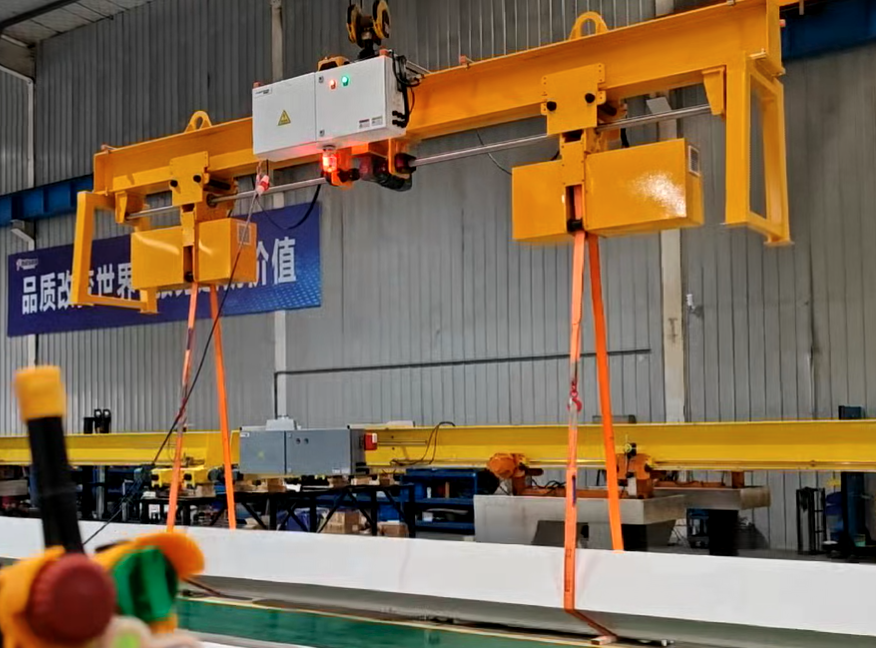

The turnover lifting device uses a robust, rigid beam integrating adjustable pulley spacing and a synchronous motor drive. A belt or chain load sling lifts the steel slab, enabling smooth and precise rotation from 0° to 360° in the air. This allows operators to easily adjust the steel plate from a flat position to a vertical position or rotate it to another side, greatly improving work efficiency.

Product Features of The Turnover Lifting Beam

• Utilizes a high-strength, rigid crossbeam, rigorously tested for stress and fatigue to ensure safety.

• Adjustable sliding lifting points quickly balance eccentric loads, adaptable to steel plates of different sizes and center of gravity positions.

• Servo motor drive enables smooth start-stop and precise angle positioning.

• Can be suspended from the hook of a bridge crane for stable rotating.

• Operators can easily perform lifting and turning operations using a portable wireless remote control.

Common Technical Parameters

• Rated Load Capacity: 1 t - 50 t

• Turning Angle: 0° - 360°

• Positioning Accuracy: ±1°

• Turning Speed: 1 - 5 rpm

• Drive Method: Servo Motor

• Load Lifting Sling: Ring Chain / Polyurethane Belt

Wide Range of Applications

• Steel slab rotating or cutting

• Assembly and painting of large sheet metal parts and equipment housings

• H-beam rotating and welding

• Steel coil lifting and handling
