Load Turning Device

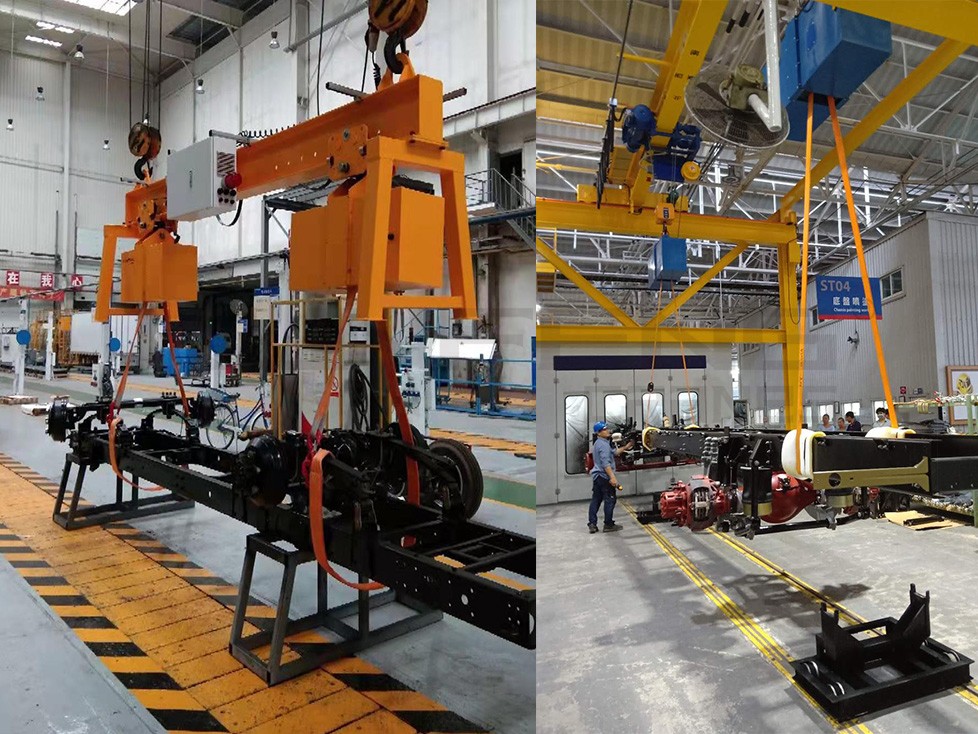

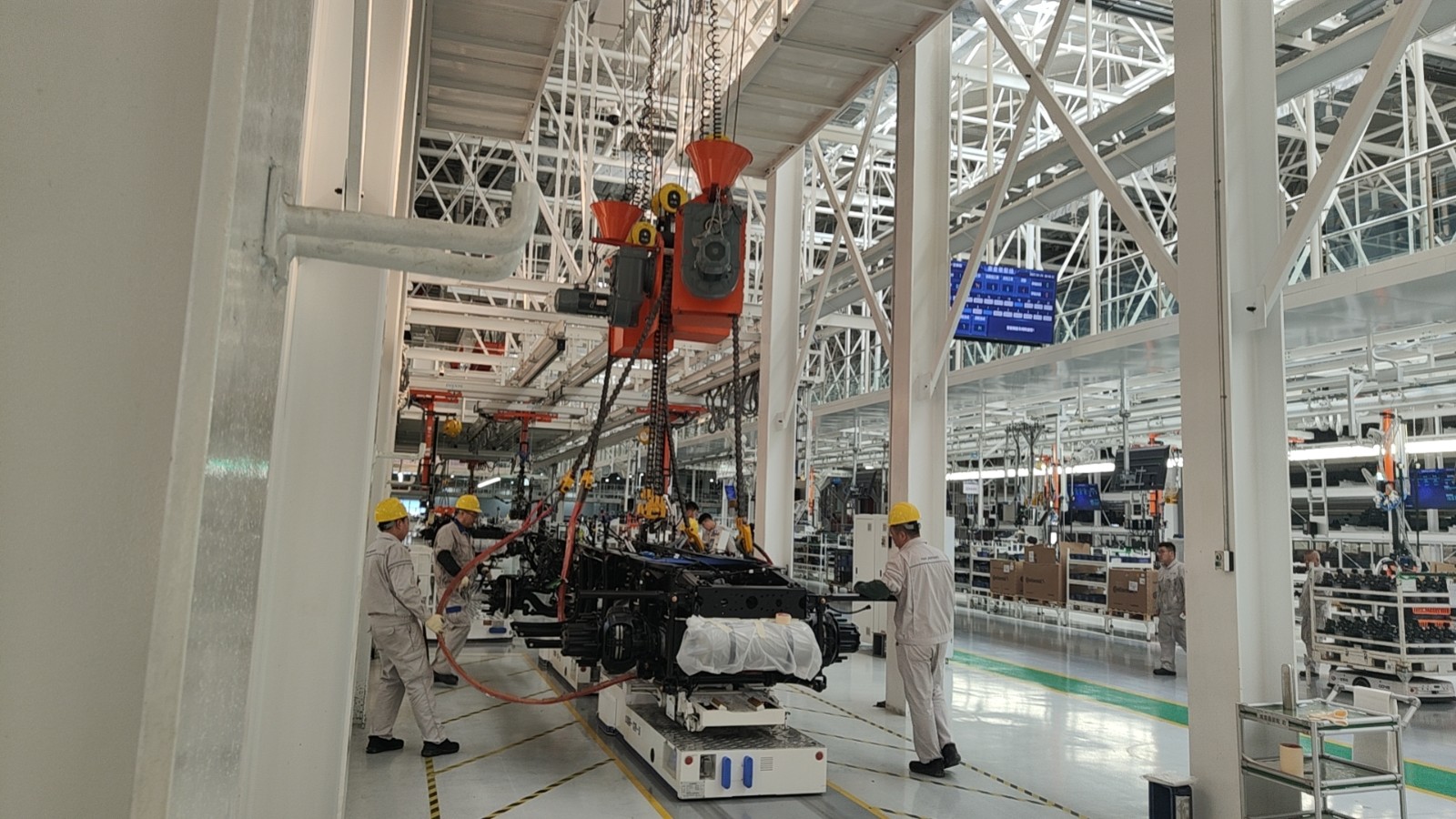

Customized load turning device is designed for lifting and rotating vehicle chassis and large workpieces, supporting smooth 0–360° rotation and precise positioning.
Product Description
The load turning device is a specialized lifting and rotating device designed for automotive manufacturing, chassis assembly, steel structure, and large equipment assembly. Utilizing a rigid turning mechanism and precise drive control, it enables safe and smooth turning and multi-point positioning of automotive chassis, frames, or large workpieces within a 0°–360° range, significantly reducing labor intensity, improving assembly efficiency, and ensuring workpiece surface integrity.
Technical Parameters (Customizable)
● Rated Load Capacity: 1t - 50t
● Rotation Angle: 0° - 360°
● Positioning Accuracy: ±1°
● Drive: Servo/Variable Frequency Motor
● Transmission: High-Strength Belt / Chain
● Mounting Method: Mounted on Crane Hooks
● Safety Devices: Mechanical / Electronic Limit Stops, Overload Protection, and Dual Braking System
Advantages of Choosing Chassis Turning Device
● Low deflection and stable position during rotating, making it suitable for workpieces with offset centers of gravity.
● Multiple stops and preset angles are supported to meet assembly alignment requirements.
● Utilizing a high-performance servo system, the turning process is fast and smooth.
● Industrial-grade components and a rugged, durable design reduce failure rates.
● Custom designs are available based on chassis size, load capacity, and rotating angle.
Why Choose KUNFENG CRANES
● Engineering Customization: Force verification and product design based on workpiece drawings (or actual parts);
● Factory Verification: No-load/full-load testing, center of gravity verification, control software debugging, and inspection certificate;
● On-site Service: Installation and commissioning, operator training, and maintenance;
● After-sales Support: Spare parts supply, remote diagnostics, and regular maintenance contracts.
Need a turning device to rotate chassis parts? Contact our engineering team for exclusive product information and customized solutions.
