H-Beam Rotating Equipment for Steel Fabrication

Product Description

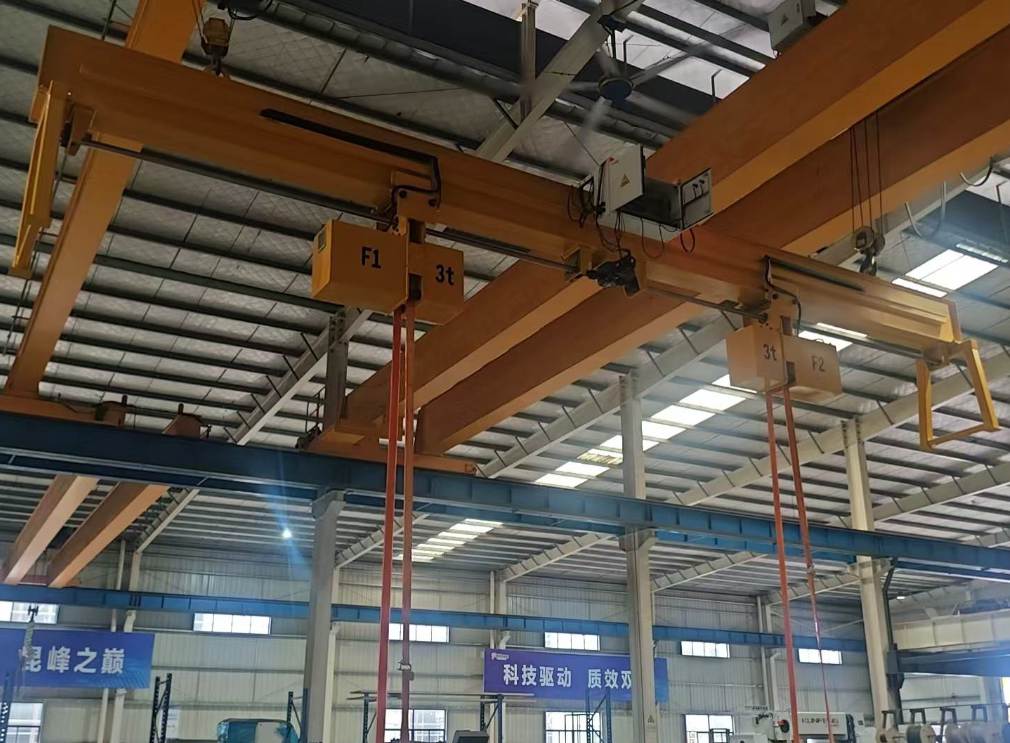

Load turning equipment is a special heavy duty tooling device used to change the spatial position of H-beams. It is mainly employed for the safe and stable rotation of large structural steel components such as H-beams, I-beams and box girders. Equipped with motor drive, reduction mechanisms, belt or chain slings, and wireless control system, the equipment enables 0° to 360° turning and positioning of steel products during production, improving the efficiency and operational safety of steel structure processing.

Working Principle of H-Beam Rotating Equipment

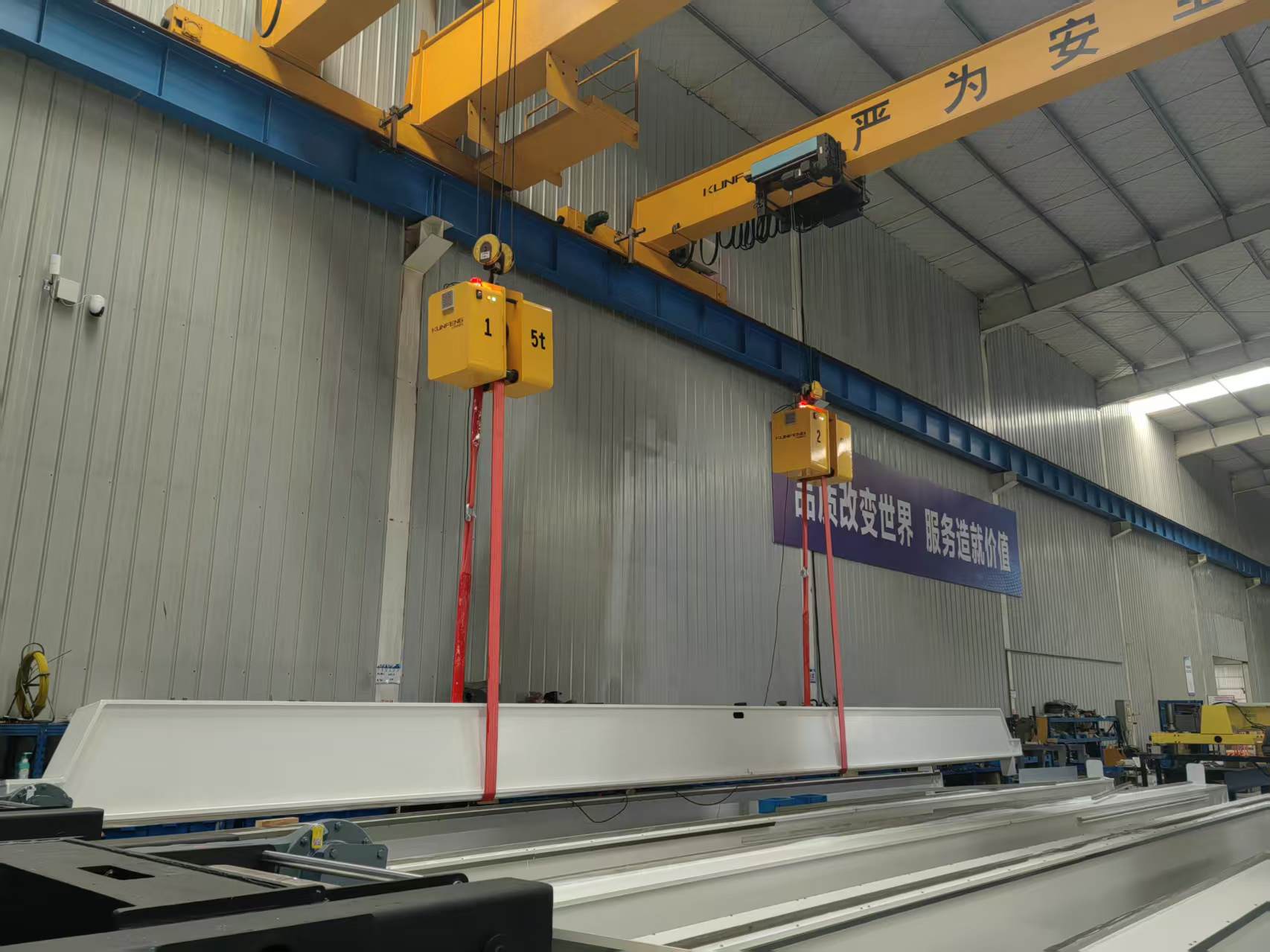

During operation, the H-beam is secured at both ends or the center using belt or chain slings to maintain balance. After the control system is activated, the motor outputs power, which is transmitted through a reducer to reduce speed and increase torque, driving the rotating mechanism to turn the H-beam smoothly. In line with diverse production requirements, the equipment supports steel structure welding, processing and assembly, ensuring stability during the rotation of large steel components, minimizing impact and enhancing production safety.

Role of Turning Equipment in Steel Structure Manufacturing

• Improves H-beam welding efficiency

• Reduces safety risks of manual operation

• Optimizes the steel structure production process

Technical Advantages of Load Turning Equipment

• Features heavy duty structural design to meet the turning requirements of steel beams of various weight ratings.

• Ensures smooth operation of H-beams during turning with reduced impact and vibration through mechanical locking, low-speed drive and precise control technologies.

• Shortens auxiliary operation time and enhances overall efficiency of steel structure production lines.

• Suitable for H-beams, box girders and other large structural steel components of different dimensions.

• Reduces manual participation in heavy load handling, helping lower labor intensity and improve safety management at production sites.

Differences Between Rotating Equipment and Traditional Turning Methods

How to Choose the Right Rotator Turning Device

• Select the equipment load capacity based on workpiece weight

• Determine equipment specifications according to workpiece dimensions

• Choose the turning method in line with production processes

• Opt for belt or chain slings based on workpiece type

• Consider the safety configuration of the equipment

Partner with a Professional Customized Turning Solution Manufacturer

Choosing a reliable industrial turning device manufacturer ensures that customized solutions can be provided according to different production requirements, helping enterprises establish safer and more efficient manufacturing processes. If you are looking for a professional turning solution for your steel structure fabrication workshop, please feel free to contact us for customized design services and expert technical support.
