Light Crane System
High efficiency and reliable KBK light suspension cranes adopt modular rail system, suitable for workstation handling, assembly production lines and light material lifting, improve production efficiency.
Product Description
KBK suspension cranes are modular, combinable light rail crane system, mainly composed of light rails, suspension devices, traveling trolleys, electric or manual hoists, supporting structures. With modular structure and flexible layout, KBK light single girder suspension cranes are ideal handling solutions for assembly lines, warehouse logistics and precision manufacturing workshops.
Main Components of KBK Single Girder Suspension Cranes
KBK Rail: High strength cold formed profile or aluminum alloy, with internal conductor bar or external power supply options;
End Carriages & Connectors: For rail connection, turning or support;
Traveling Trolley: Equipped electric or manual hoists and moves smoothly along the rail;
Electric / Manual Hoists: Provide vertical lifting function, with lifting capacity usually ranging from 100kg to 2000kg;
Column or Hanging Bracket: For floor mounted or roof mounted installation.
Product Advantages of KBK Light Single Girder Suspension Cranes
All components are designed with standard dimensions, supporting various layouts such as straight, curved and circular rails to meet workshop structure or production line expansion needs.
The rails are made of high strength cold-rolled steel or aluminum alloy, featuring light weight and high strength, with low requirements on workshop load-bearing capacity.
Optimized rail section design combined with precision roller trolleys ensures low running resistance, smooth start-stop and accurate positioning.
Bolted connection enables fast installation with minimal interference to production.
Compared with customized overhead cranes, KBK system features high standardization, lower procurement and installation costs, flexible later expansion.
Main Types of KBK System
KBK‑I (Monorail System): Suitable for straight or simple curved paths, often used for material conveying or single-station auxiliary lifting.
KBK‑II (Single Girder Crane): Consists of two parallel rails and end carriages; the hoist runs transversely along the main girder, covering a rectangular working area.
KBK‑III (Double Girder Crane): Improves rigidity and stability, suitable for large spans or high-precision positioning applications.

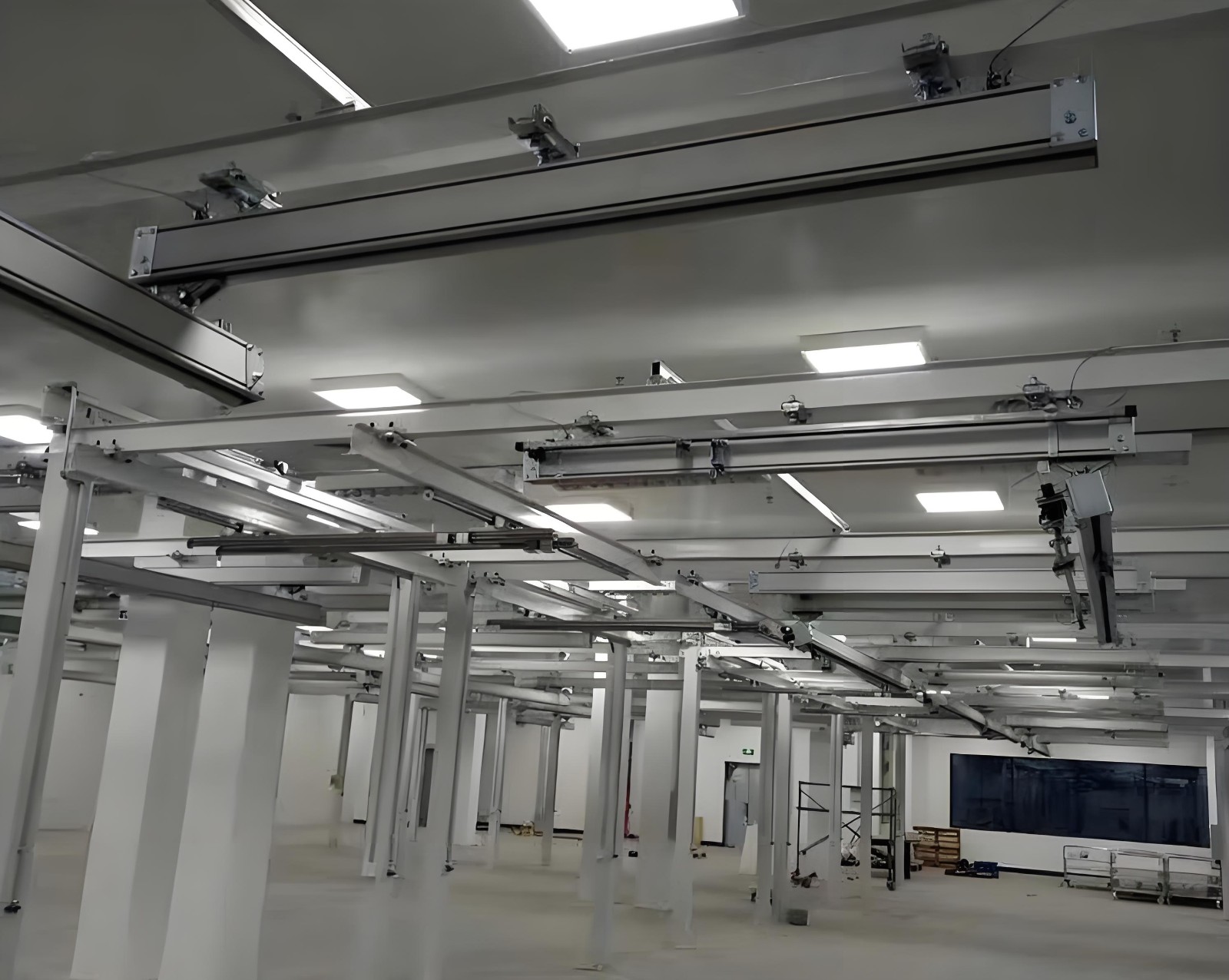

KBK‑D (Aluminum Rail System): Lightweight and corrosion-resistant, ideal for cleanrooms, laboratories or precision electronics environments.
Why Choose KUNFENG KBK Light Crane System
Customized rail design solutions
Multiple material options
Accurate load calculation and structural optimization
Fast delivery and technical support
Complete after-sales service system
Whether for new production lines or upgrading existing workshops, our KBK crane system provides stable and reliable handling support. For detailed technical parameters or customized solutions, please contact us for professional technical support and product quotation.
