KBK Suspended Bridge Crane with Electric Chain Hoist

Product Description

KBK suspended bridge crane is a light duty material handling equipment designed based on the modular KBK flexible rail system. By combining suspended bridge structure with an electric chain hoist, it enables precise lifting, horizontal transfer and spatial conveying of materials within workshops.

This lifting system adopts suspended rail layout installed on the factory roof structure or independent support system, which occupies no floor space and allows flexible routing planning according to production requirements. Equipped with an electric chain hoist, the equipment delivers stable and reliable lifting performance while meeting high frequency and continuous production handling demands, making it an ideal choice for improving workshop productivity and manual handling conditions.

Main Components of the KBK Suspended Bridge Crane

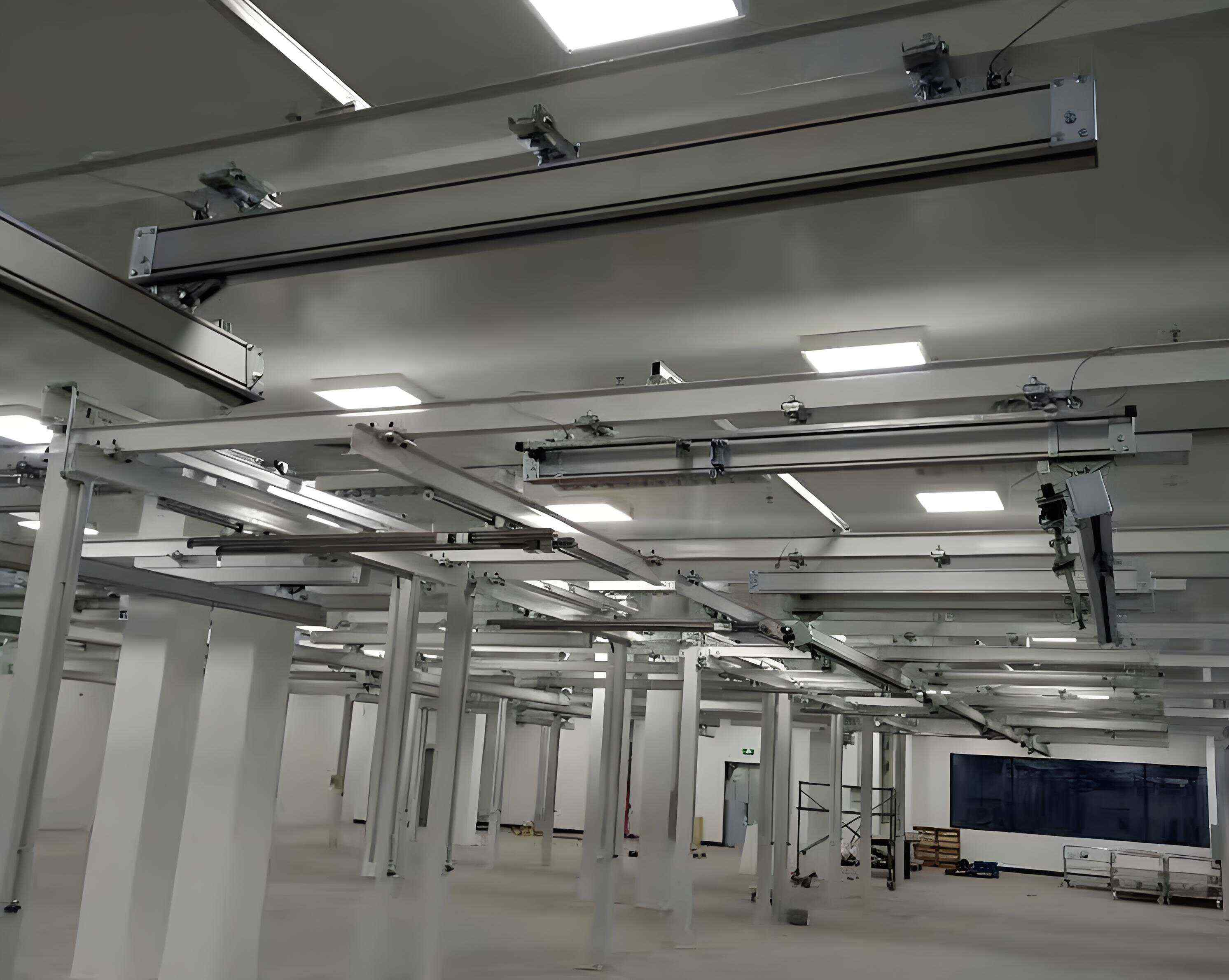

KBK Modular Rail System

Featuring a standardized modular design, it consists of main rails, connecting components, suspension devices and travelling trolleys. Fixed to the factory roof or steel structure via hanging fixtures, it can be configured with complex routes such as straight lines, curves and multi-rail intersections based on workshop layout, providing highly flexible material handling solutions for production workshops.

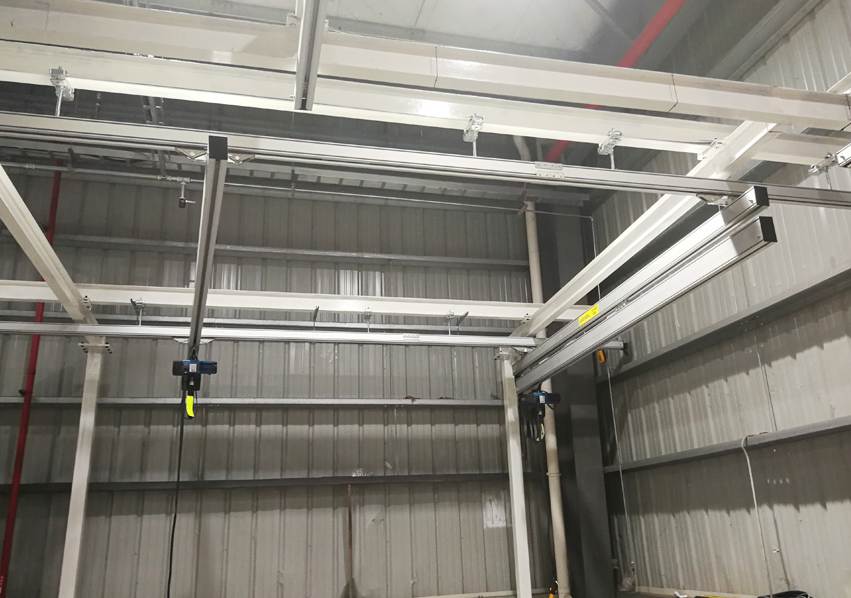

High Performance Electric Chain Hoist

As the core lifting component, it uses high strength alloy steel chains as the load-bearing medium, featuring smooth operation, low noise and precise positioning. Key advantages of the lifting hoist:

• High strength chain design for long-term high frequency lifting

• Precision gear transmission for enhanced operational stability

• Motor with overheat protection for improved safety

• Simple maintenance reducing long-term operating costs

• Support for single speed, dual speed and variable frequency control for accurate handling

Suspended Bridge Structure

The bridge connects the running rails on both sides and supports the electric chain hoist and lifted loads. With an optimized lightweight structure, it reduces running resistance and improves mobility while ensuring load capacity. It can be customized according to on-site span, lifting capacity and working range.

Advantages of KBK Suspension Crane with Electric Hoist

• Flexible modular design allows rail layout adjustment according to production flow, realizing fast material transfer between different workstations.

• Top-suspended installation requires no ground working area, suitable for space restricted factories, assembly workshops and automated production zones, and can be integrated with existing production lines and equipment layouts.

• Operators control lifting and horizontal movement via push button pendants or wireless remote controls for smooth and safe material handling.

• Low running resistance and minimal wear of the KBK rail system ensure long-term stable operation and lower maintenance costs.

• Multiple safety protection features guarantee reliable performance in complex industrial environments.

Technical Parameters of KBK Lifting System (Customizable on Request)

Case Study: Material Handling in Automotive Component Assembly Workshop

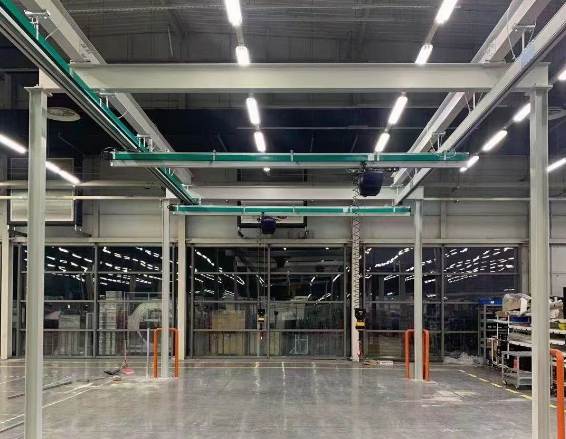

A European automotive parts manufacturer required a lifting system during the upgrade of its automated assembly production line. The company needed equipment capable of covering multiple workstations, improving component transfer efficiency, and reducing manual handling workload. Based on the site layout and technical requirements, KUNFENG provided a single girder KBK suspension bridge crane. The lifting system was installed along the production line using overhead KBK rails, enabling continuous coverage between multiple workstations. Operators controlled the electric chain hoist via wireless remote control to transfer engine components weighing approximately 750 kg between different assembly workstations.

After installation, the lifting system maintained low noise operation and smooth movement, reducing production waiting time and improving assembly line efficiency. It also optimized workshop space utilization and significantly reduced the labor intensity associated with manual material handling.

Partner with a Professional KBK Light Crane System Supplier

As a professional light crane system manufacturer, KUNFENG provides customized lifting solutions based on customers’ factory structures, production requirements, lifting capacities and automation needs. With reliable product quality and extensive industry experience, we help enterprises build safe and efficient modern material handling systems. If you are looking for a KBK suspension bridge crane for workshop production line, contact us for professional technical solutions and customized quotations.
