Rotator Turning Device for Casting Workshops

The rotator turning device enables smooth lifting and precise rotation of various heavy castings, suitable for steel casting, iron casting and large structural component processing applications, improving the handling efficiency of heavy duty workpieces.

In foundry workshops, workpieces typically feature heavy weight, irregular structures, noticeable center of gravity deviation and rough surface conditions. Conventional lifting equipment can only handle basic vertical hoisting and is unable to meet the requirements of complex processes such as flipping, positioning and assembly. Our rotator turning device is designed with structured engineering approach, enabling stable lifting of castings and controlled rotation at 90°, 180°, or even any required angle in mid-air, significantly reducing manual intervention and lifting risks.

High Strength Structural Design and Stable Load-Bearing System

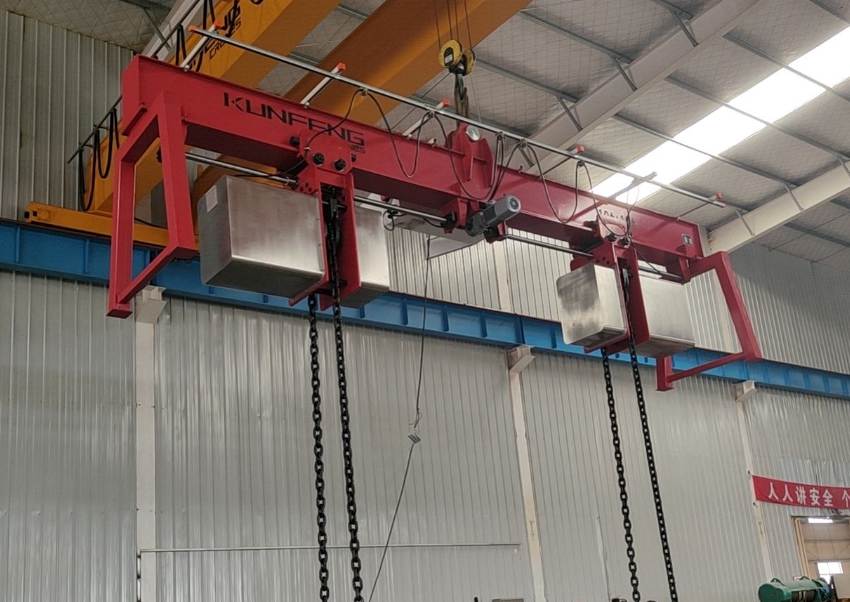

The turning device adopts high strength alloy steel main structure combined with finite element optimization to ensure excellent rigidity and safety margin even under heavy duty working conditions. The tilting mechanism consists of a main load-bearing beam, turning mechanism, chain slings, lifting point assemblies, and a screw type balance adjustment device. Through a scientifically distributed force design, the equipment maintains a stable center of gravity during the turning process, preventing swing or loss of control caused by eccentric casting loads, thereby improving overall controllability and operational safety.

Integrated Turning Function for Higher Production Efficiency

This rotating equipment enables 0° - 360° rotation in a single lifting cycle, effectively reducing intermediate handling steps and equipment occupation time. For foundry workshops, this integrated operation mode significantly shortens the turnover cycle between processes, improves overall production efficiency, and reduces the complexity of coordination between lifting equipment and operators.

Multiple Safety Protection Mechanisms for High-Risk Foundry Operations

Foundry environments are complex and demand higher safety performance from equipment. This casting tilting mechanism is equipped with multiple safety protection systems, including mechanical locking structures, overload protection devices, rotation angle limit systems, and emergency braking functions. Key load-bearing components adopt redundant structural designs, ensuring structural integrity even under extreme working conditions and fundamentally reducing the risk of lifting accidents.

Case Study: Production Line Upgrade in a Large Steel Casting Factory

A large steel casting manufacturer previously relied on overhead crane for manual flipping operations, which resulted in low efficiency and high safety risks. After introducing the rotator device and integrating it with the existing overhead crane, the factory achieved combined lifting, turning and positioning in a single operation. Turning time was reduced by approximately 60%, manual labor involvement decreased by over 75%, and surface damage rates of castings were significantly reduced, greatly improving overall production line efficiency.

How to Select a Suitable Load Turning Device

• Rated load capacity (1t - 50t)

• Workpiece size and center of gravity distribution

• Required turning angles

• Workshop layout and space conditions

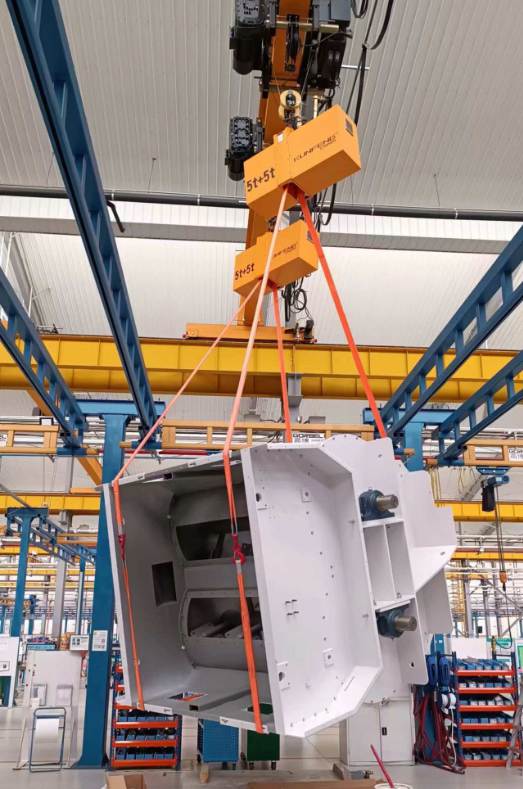

• Selection between chain type or belt type lifting slings

• High temperature adaptability

• Compatibility with existing overhead crane

As a professional manufacturer of industrial load turning devices, KUNFENG provides customized solutions for castings of different loads and specifications, meeting the requirements of foundry workshops for heavy duty handling, precise turning and accurate positioning. Contact our engineering team today to obtain professional technical support and tailored solution design.
