Free Standing Aluminum Rail Bridge Cranes

Product Description

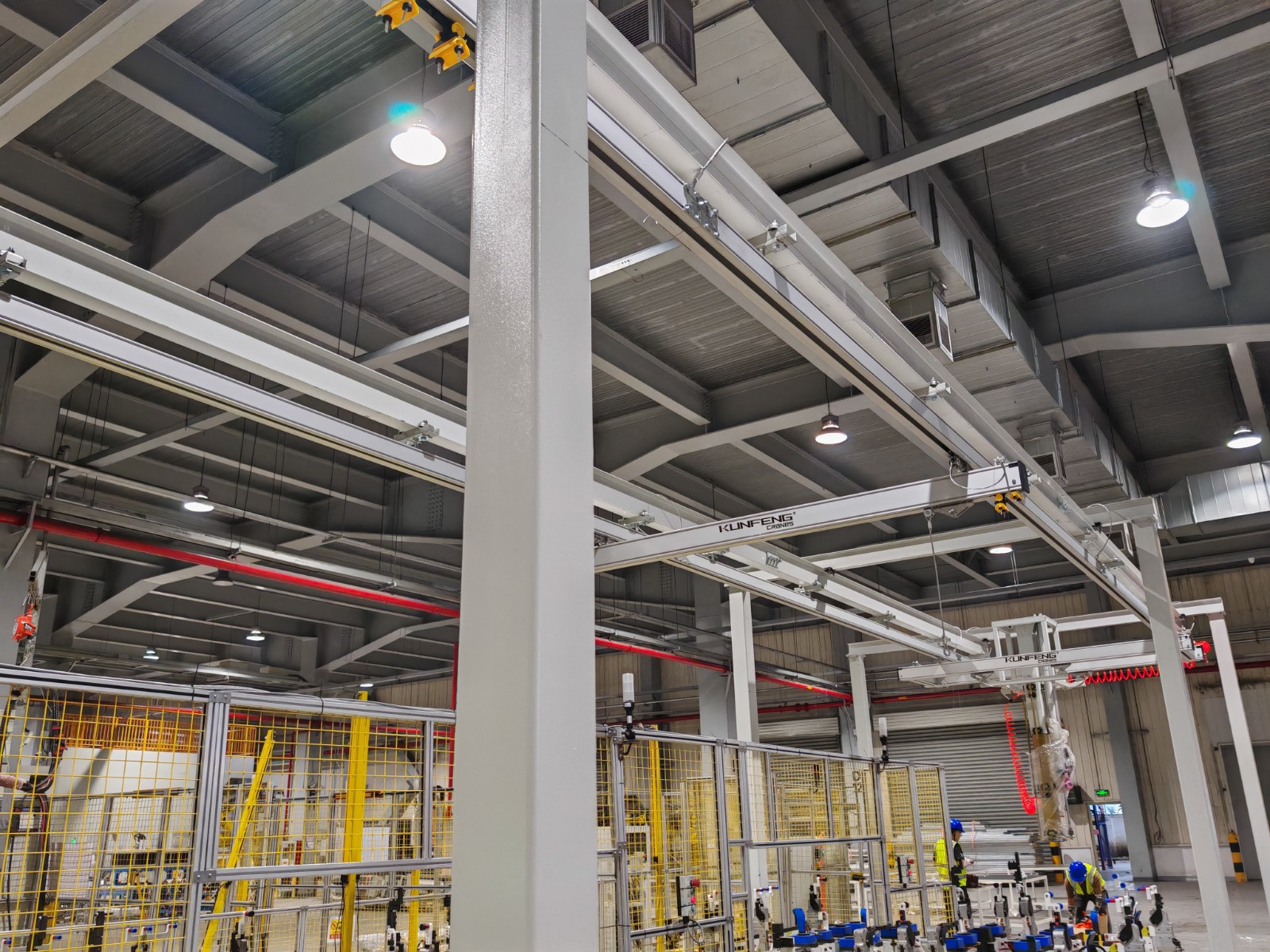

The free standing bridge cranes utilize high-strength aluminum alloy rails and a sturdy steel support frame, forming a complete, freestanding workstation lifting system. Compared to traditional steel rail bridge cranes, it is lightweight, has a quick installation cycle, is highly mobile, and is corrosion-resistant. It is particularly well-suited for the flexible material handling needs of electronics, cleanrooms, light industrial assembly lines, laboratories, and small- to medium-sized manufacturing environments.

Product Advantages of Free Standing Aluminum Rail Bridge Cranes

  ● The modular, freestanding support structure completely eliminates the need for reliance on or modification of the factory roof structure.

  ● The aluminum alloy surface treatment and enclosed electrical box design meet the requirements of cleanrooms and mildly corrosive environments.

  ● The modular design of the rails, bridge, base, and travel mechanism facilitates rapid assembly, expansion, or future relocation.

  ● Compatible with belt hoists, chain hoists, and custom fixtures, it easily integrates with equipment and production lines.

  ● Modular components facilitate on-site replacement, minimizing downtime.

Wide Range of Applications

  ● Used for handling, positioning, and assembly of precision components

  ● Assembly and handling of maintenance and laboratory equipment

  ● Material handling in cleanroom workshops

  ● Medium-to-low-tonnage handling tasks in packaging and warehousing

Installation, Commissioning, and Maintenance Key Points

  ● Easy Installation: Modular rail sections are assembled on-site, and the independent support base is secured with anchor bolts, eliminating the need for overhead work or factory reinforcement.

  ● Commissioning Steps: Positioning → Bridge Leveling → Travel and Hoisting Test → Safety Function Testing → Factory Operational Test.

  ● Maintenance Recommendations: Regularly inspect the travel wheels, bearings, transmission, and electrical wiring; keep the aluminum rails clean to prevent wear and foreign matter; and maintain a supply of key spare parts.

  ● Training and Documentation: Installation and commissioning records, operating manuals, and maintenance records are provided, along with on-site operator training.

Want to learn how freestanding bridge cranes can enable rapid deployment and flexible handling in your workshop? Contact our lifting experts for a free custom solution and a reasonable quote.
