Jib Cranes
The floor mounted column jib crane adopts a modular design and supports 90° to 360° rotation. It is suitable for lifting and flexible handling of small materials in workshops, warehouses and production lines.
Product Description

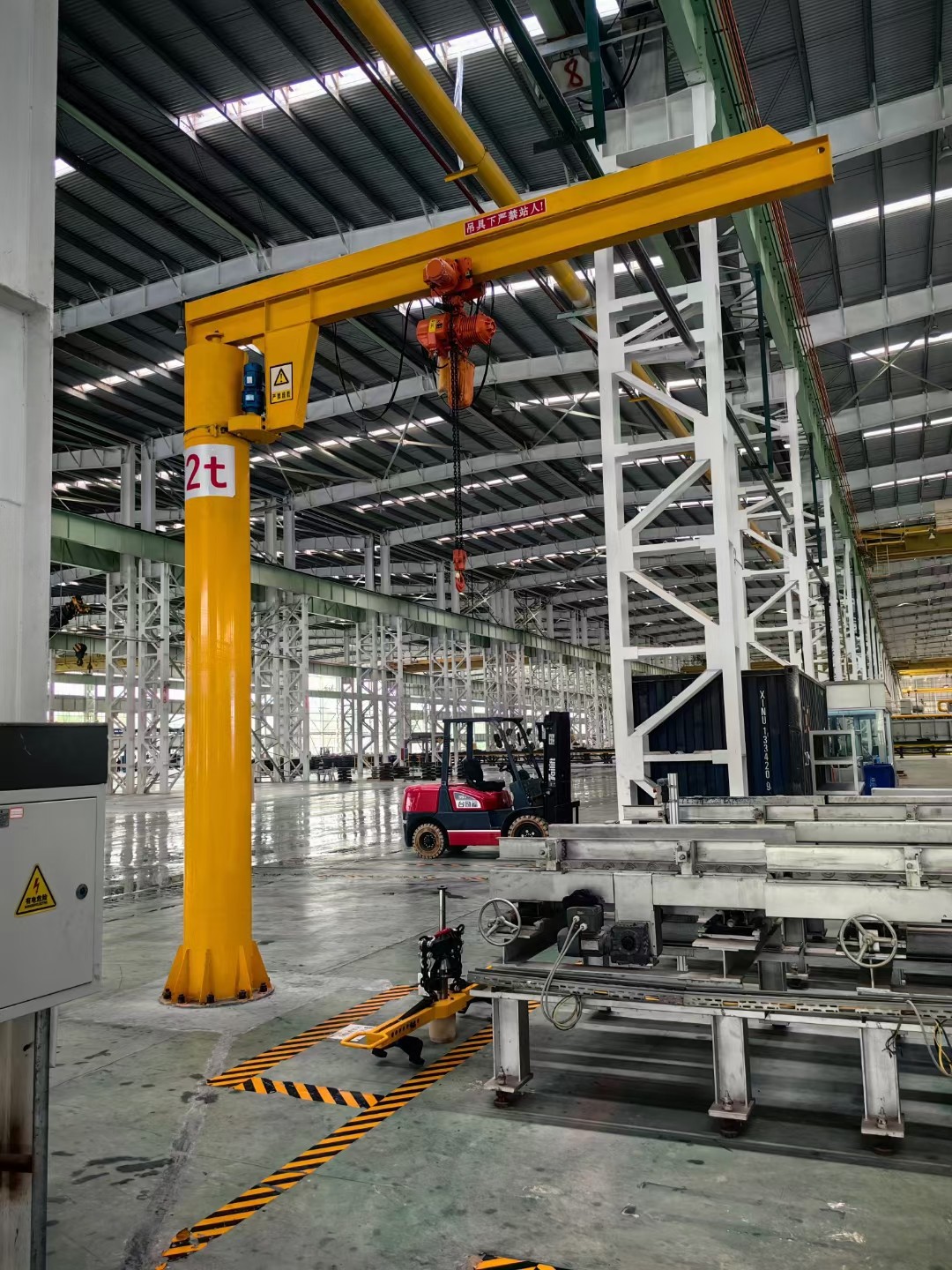

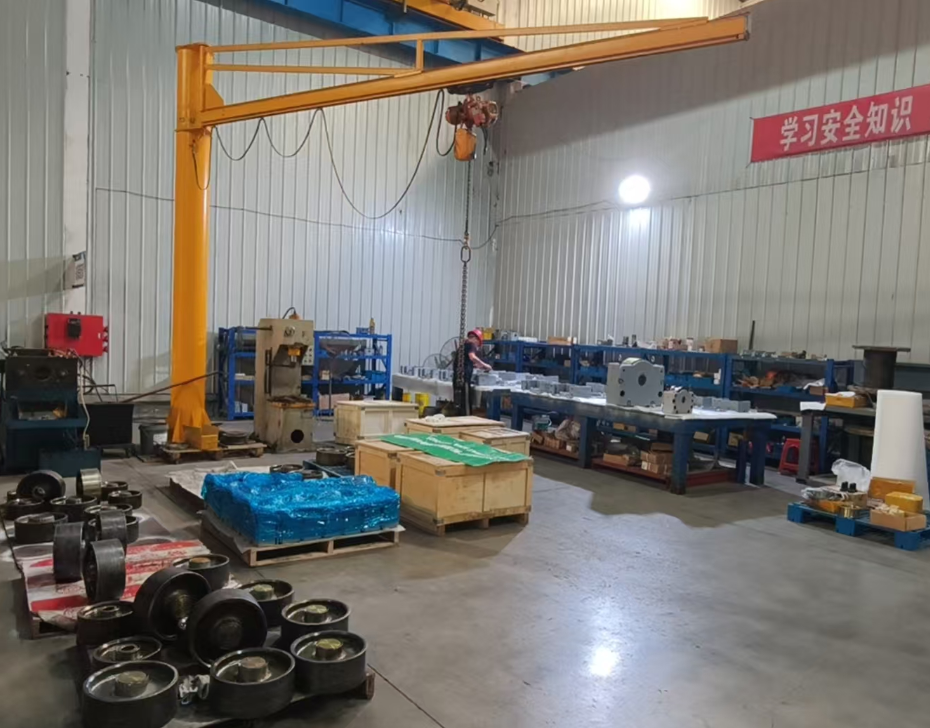

The floor mounted column jib crane is an independently supported lifting equipment, which consists of a column, a rotatable cantilever and a hoisting hoist. The jib is driven to rotate manually or electrically to realize horizontal handling and vertical lifting of materials. The equipment has a simple structure and can rotate 360°. It is widely used in material handling, equipment maintenance and assembly operations in workshops, warehouses, production lines and other scenes.
Main Structure of Floor Mounted Column Jib Crane
● Column base: Fixed to the concrete floor by anchor bolts, bearing the weight of the whole machine and the hoisting load.
● Cantilever structure: Can be an I-beam or box beam structure, providing horizontal rotation working space.
● Rotation mechanism: Supports 90°-360° rotation, manual or electric drive are optional.
● Hoisting system: Equipped with a chain or wire rope hoist, it can realize the lifting, lowering and horizontal movement of heavy objects.
Main Advantages of Floor Mounted Jib Crane
● Modular design, fast assembly, no need for complex foundation construction, saving installation costs.
● Optional electric hoist + frequency conversion control to achieve precise positioning (±1mm).
● The rotation angle and drive mode can be customized according to needs, easy to operate and accurate positioning.
● Simple structure, low failure rate, convenient daily maintenance and low operating cost.
● Standard overload protection, limit switch and emergency brake device.
Technical Parameters (For Reference)
● Lifting weight: 50kg ~ 3000kg
● Lifting height: 1.5m ~ 8m (customizable)
● Cantilever length: 2m ~ 6m (customizable)
● Rotation angle: 90° ~ 360°
● Drive mode: Manual / electric rotation
● Control mode: Button control / remote control
● Installation method: Floor mounted embedded or anchor bolt fixing
According to different working environments and operation requirements, users can flexibly customize the height, cantilever length, hoist configuration and other parameters of the column jib crane to achieve efficient and safe material handling operations. If you need to obtain specific technical solutions and quotations, please contact our sales team, we will provide you with tailor-made solutions.
