Wall-mounted Cantilever Jib Crane

Product Description

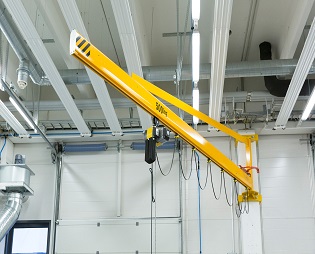

Wall-mounted cantilever jib crane is a type of local lifting equipment fixed to a wall or column. It features a compact footprint, a 180° (360° customizable) jib rotation, and easy installation. Used in conjunction with a chain hoist or wire rope hoist, it can easily and precisely lift heavy loads within a circular work area, making it an ideal choice for fixed-station lifting.

Overview of a Wall-mounted Jib Crane Components

A wall-mounted jib crane consists of a wall-mounted support, a rotating cantilever, a trolley, a lifting mechanism, and safety devices. Compared to floor-standing or bridge cranes, a wall-mounted jib crane takes up less floor space, making it ideal for narrow factory aisles or locations requiring multiple localized lifting operations. It allows for quick positioning and efficient operations.

Core Advantages: Why Choose Our Wall-Mounted Jib Cranes

  ● Wall-mounted installation eliminates the need for column feet or ground foundations, freeing up floor space.

  ● The jib can rotate continuously or at fixed angles, covering single or multiple workstations.

  ● The compact structure can be directly fixed to load-bearing walls or steel columns, shortening on-site installation time.

  ● Key components such as the hoist, wire rope, and chain all comply with national safety regulations, providing multiple safety features.

  ● A variety of rated lifting capacities are available, with a jib radius ranging from 1 to 5 meters to meet the needs of different workstations.

Wide Range of Applications

  ● Loading and unloading at assembly line stations

  ● Moving materials between shelves or on loading docks

  ● Partial lifting at machine repair/maintenance stations

  ● Lifting in cleanrooms or in food/pharmaceutical environments

Our Services and Commitment

  ● Customization: We can provide customized boom length, lifting capacity, and installation solutions based on your specific workshop layout and requirements.

  ● Professional Guidance: We provide detailed installation drawings and technical support to ensure a seamless installation.

  ● After-sales Guarantee: Our comprehensive after-sales service network provides rapid spare parts support and technical consultation.

You can chat with us online or email us (sale@kfqizhongji.com), and our technical team will provide free design and product selection advice, tailoring the most cost-effective solution for you!
