Load Rotator for Trailer Chassis Lifting and Turning

The high performance load rotator adopts heavy duty steel structure and synchronized turning system to achieve safe lifting and smooth rotation of workpieces, meeting the requirements of trailer chassis welding, assembly and maintenance operations.

In the trailer, semi-trailer and heavy vehicle manufacturing industries, chassis structures are typically characterized by large dimensions, heavy weight and frequent repositioning requirements. During welding, assembly, painting and maintenance processes, the rapid adjustment of workpiece positioning directly affects production efficiency and operational safety. Our load rotator can help achieve smooth lifting, 360° rotation and precise positioning of large trailer chassis, making it an essential auxiliary solution in modern trailer production lines.

Why Chassis Manufacturing Require Professional Turning Device

Trailer chassis are usually welded from longitudinal beams, cross beams, reinforcements and various steel structural components. Due to their long length and heavy weight, frequent turning operations are required throughout the manufacturing process.

Traditional manual turning methods face the following challenges:

• Unstable turning process with safety risks

• Workpiece swinging that affects welding accuracy

• High labor intensity for workers

• Difficulty accessing bottom weld seams

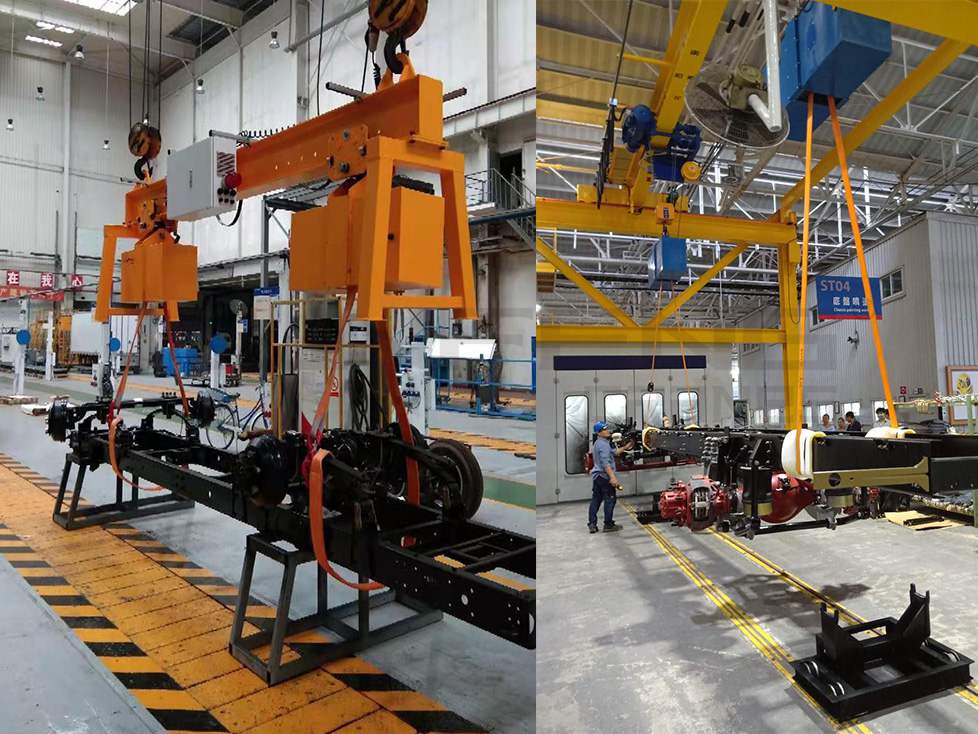

The KUNFENG load turning device can be integrated with overhead crane system. Through synchronized drive turning design, it enables stable lifting of the trailer chassis into the air and controlled rotation to specified angle, allowing operators to perform welding, grinding and assembly work in the optimal position, thereby improving production efficiency and workplace safety.

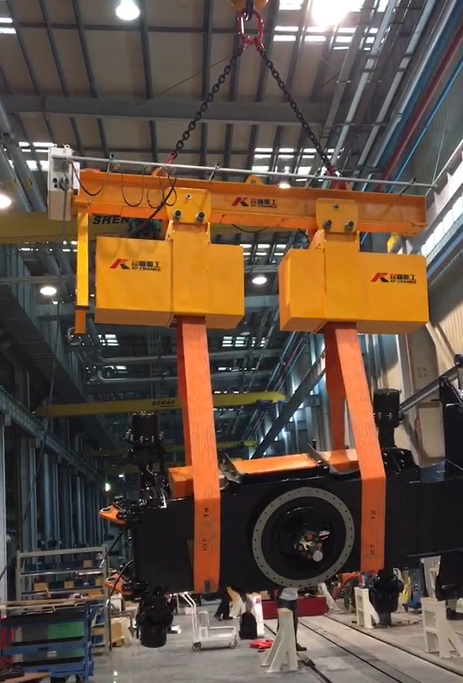

Smooth Lifting and Synchronized Rotation for Improved Chassis Turning Safety

Industrial rotator device adopts heavy duty steel structure frame combined with synchronized drive mechanisms to ensure balance during the turning process.

Main configurations include:

• Dual-side synchronized turning drive system

• Electric lifting system

• High strength chain or fiber belt slings support

• Mechanical limit and safety locking protection devices

• Variable frequency speed control system

• Automatic balance adjustment configuration

Through synchronized drive technology, the equipment effectively prevents uneven loading, tilting or slipping of the workpiece, ensuring stable operation during the lifting and rotating of large trailer chassis.

Suitable for Various Trailer and Heavy Vehicle Chassis Structures

• Semi-trailer chassis

• Container transport trailer chassis

• Flatbed trailer chassis

• Tank trailer chassis

• Special engineering vehicle chassis

• Garbage transport vehicle chassis

According to different workpiece requirements, the system can be configured for 180° turning, 360° continuous rotation or fixed-angle positioning to meet various production process demands.

How to Select the Right Chassis Rotator

• Confirm the maximum length, width and weight of the trailer chassis to ensure sufficient load capacity.

• Select 180° turning or 360° continuous rotation based on welding and assembly process requirements.

• Choose chain or belt slings according to the workpiece characteristics.

• Ensure compatibility with the existing overhead crane system in the workshop.

• Verify whether the equipment includes limit protection, overload protection and emergency stop functions.

Choosing a rotator turning device with stable structure, reliable performance and customizable design not only helps improve production efficiency, but also supports the transition toward automated and intelligent manufacturing. Feel free to contact us for more product details and professional customized solutions.
