Wheel Block System

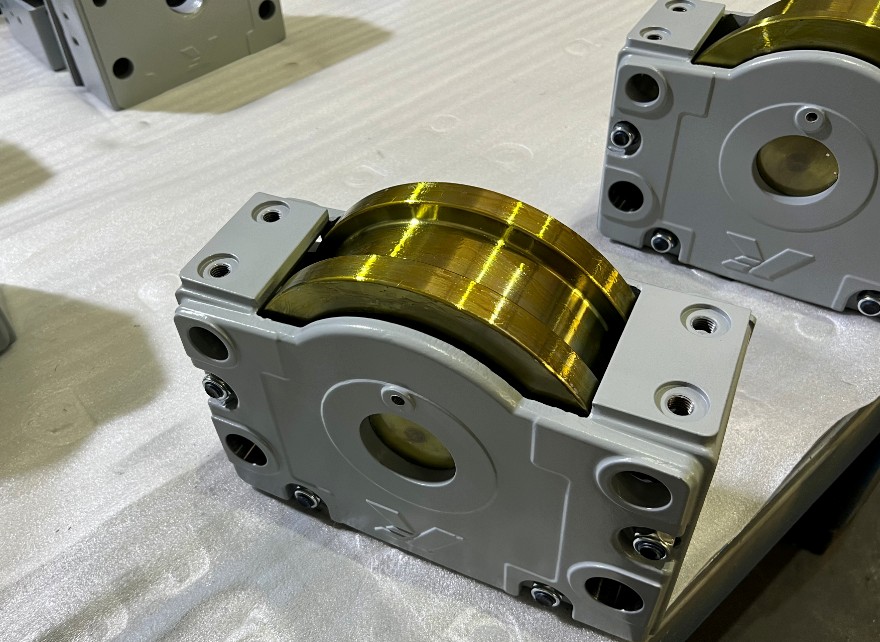

The DRSA 160 wheel block is a travel wheel set for heavy-duty applications, high load capacity, wear resistance and smooth operation, ensuring long-term stable operation of the stacker crane.
Product Description
The DRSA 160 wheel block is high performance wheel assembly components designed for stacker cranes and automated storage system, featuring a compact structure, high load-bearing capacity and smooth operation. The modular design of the travel wheel facilitates installation and maintenance, and can be flexibly configured according to the stacker crane's load, running track, and drive method.
Advantages of DRSA Wheel Block
Preferred high-strength alloy steel or ductile iron material ensures rigidity and fatigue resistance.
Simple installation and maintenance, easy connection to the structure.
Elastic outer cladding and precision bearings reduce operating noise and vibration, ensuring stable operation of the stacker crane.
Laser calibration system eliminates various installation errors during wheel box installation.
Robust and durable wheel box housing effectively protects the traveling wheels and bearing arrangement.
Available options include double-flanged, single-flanged, and flangeless designs with side guide wheels to adapt to various track systems.
Selection and Installation Guide
Load Parameter Calculation
Rail Matching and Flange Selection
Environmental Factors and Special Requirements
Precise Installation
Daily Inspection and Preventive Maintenance
Modular Design for Loading and Unloading

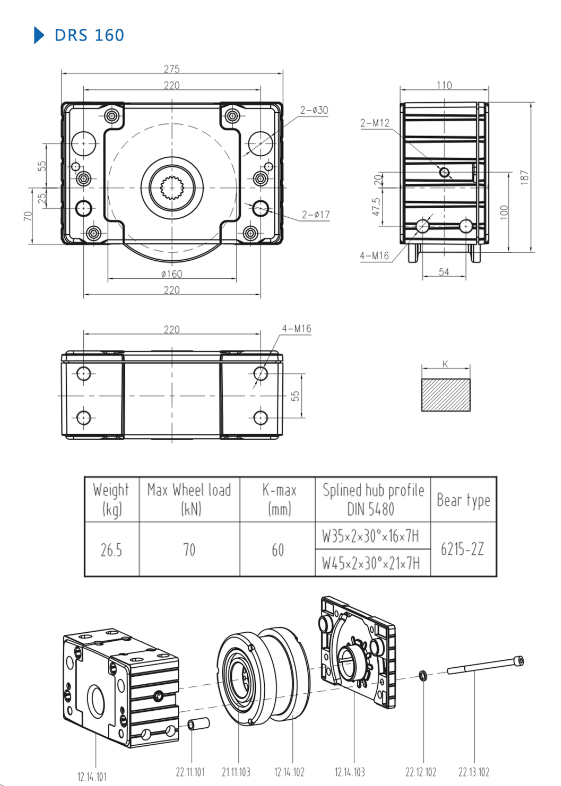

Common Specifications Reference
Load Capacity: 7 tons
Wheel Diameter: Ø160 mm
Width: Customized as needed
Mounting Method: Through-hole / Spline / Tapered Bolt / Flange
Outer Material: Polyurethane / High Abrasion-resistant Rubber (Optional)
Bearings: Selected according to load
Our Custom Design Service – Please send us your technical drawings or specific requirements, and our engineering team will provide you with the most suitable DRSA wheel block solution for your application.
