Wheel Block System
DRSA wheel block is a versatile, compact wheel box that is easy to use, flexible and has excellent performance. It has a wide load range, with wheel weights from 2.75 tons to 40 tons, providing solutions and high-quality products for various handling scenarios.
Product Description
DRSA wheel block is a multi-purpose wheel block system designed for heavy material handling applications. It is available in a variety of models (DRSA 112 - DRSA 500) with a single wheel load capacity ranging from 2.75 tons to 40 tons. DRSA wheel block adopts a modular design, with advantages such as compact structure, precise size, smooth operation, and easy maintenance. Special designs are also available to meet customer needs. KUNFENG offers a variety of wheel configurations, including double rim, single rim, rimless and polyurethane wheels, enabling it to adapt to various complex working conditions.
Features of DRSA Wheel Block System
● Modular structure simplifies installation and maintenance. Different modules can be combined according to actual needs to meet diverse application scenarios.
● Made of high-strength materials such as ductile iron, it has excellent load-bearing capacity and wear resistance, ensuring reliable operation under heavy loads, high speeds or complex environmental conditions.
● The sturdy shell material improves durability and ensures stable and safe operation.
● Four installation connection methods are provided: top connection, pin connection, end connection, and side connection, which are flexibly adapted to various equipment structures.
● High-quality materials and precision manufacturing ensure long service life and extremely low wear.
● Intelligent monitoring systems can be integrated to track real-time operating conditions and maintenance status, helping users detect problems early.

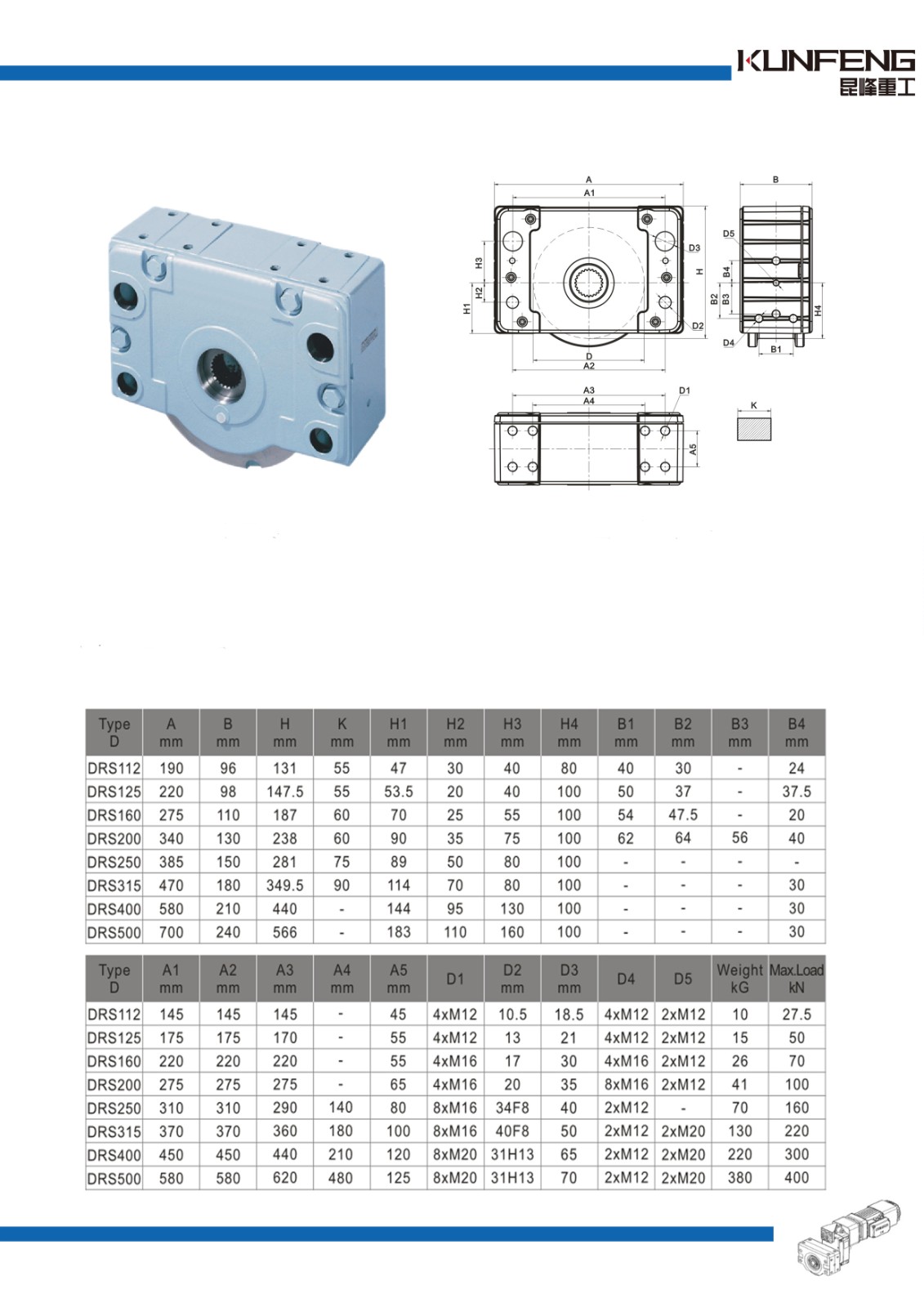

Technical Parameters

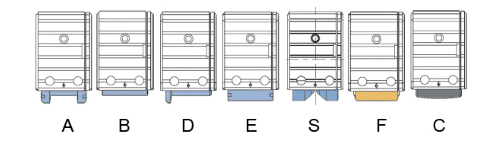

Wheel Blocks of Different Shapes
A: Both sides are guided by rims, suitable for rail systems
B: Rimless travel wheel, can be matched with side guide wheels or concave to meet customer specifications
D: The travel wheel is guided by rims on one side, suitable for devices running on the ground
E: Large diameter rimless travel wheel, suitable for occasions with high clearance above the ground
S: Prismatic, trapezoidal or concave travel wheels, suitable for applications with guide rails
F: Polyurethane rimless travel wheel with extremely high acceleration and quiet operation
C: Rimless concave polyamide travel wheel, quiet operation, no damage to the track

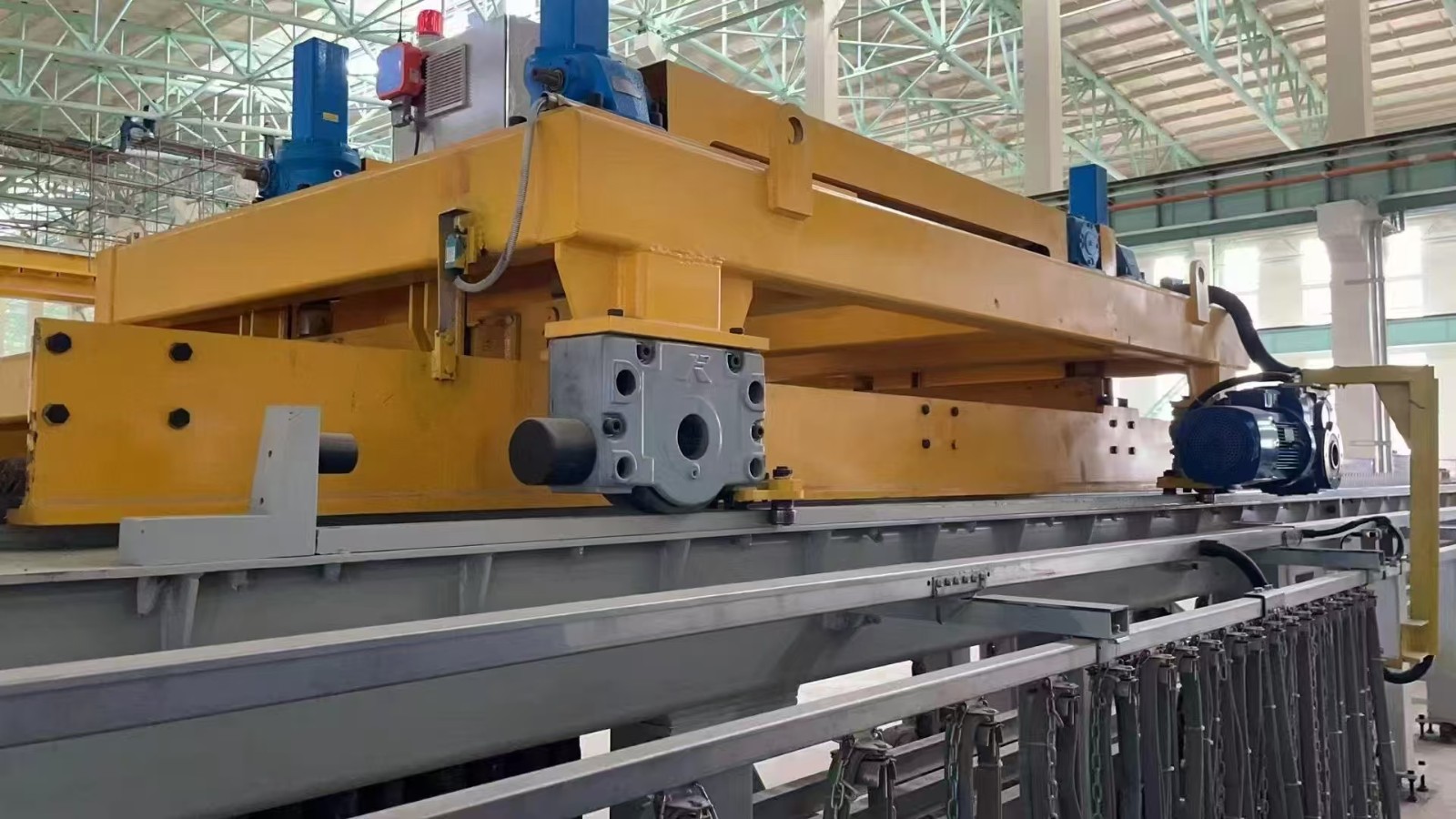

Applications of DRSA Wheel Block
● Container handling, large cargo transfer
● Shield machine, conveyor belt trolley travel
● AGV/RGV trolley rail system
● Bridge travel wheel set of bridge crane
● Automated warehouse shuttle car wheel set
If you have any customization needs or technical consultations for DRS wheel set system, please feel free to contact us, we will provide you with professional solutions and comprehensive after-sales support.
