How Rotating Spreader Beam Realize Structural Steel Flipping
Rotating spreader beam provides professional flipping solutions for structural steel, catering to various tonnage and working condition requirements, ensuring stable and safe load turning operations.

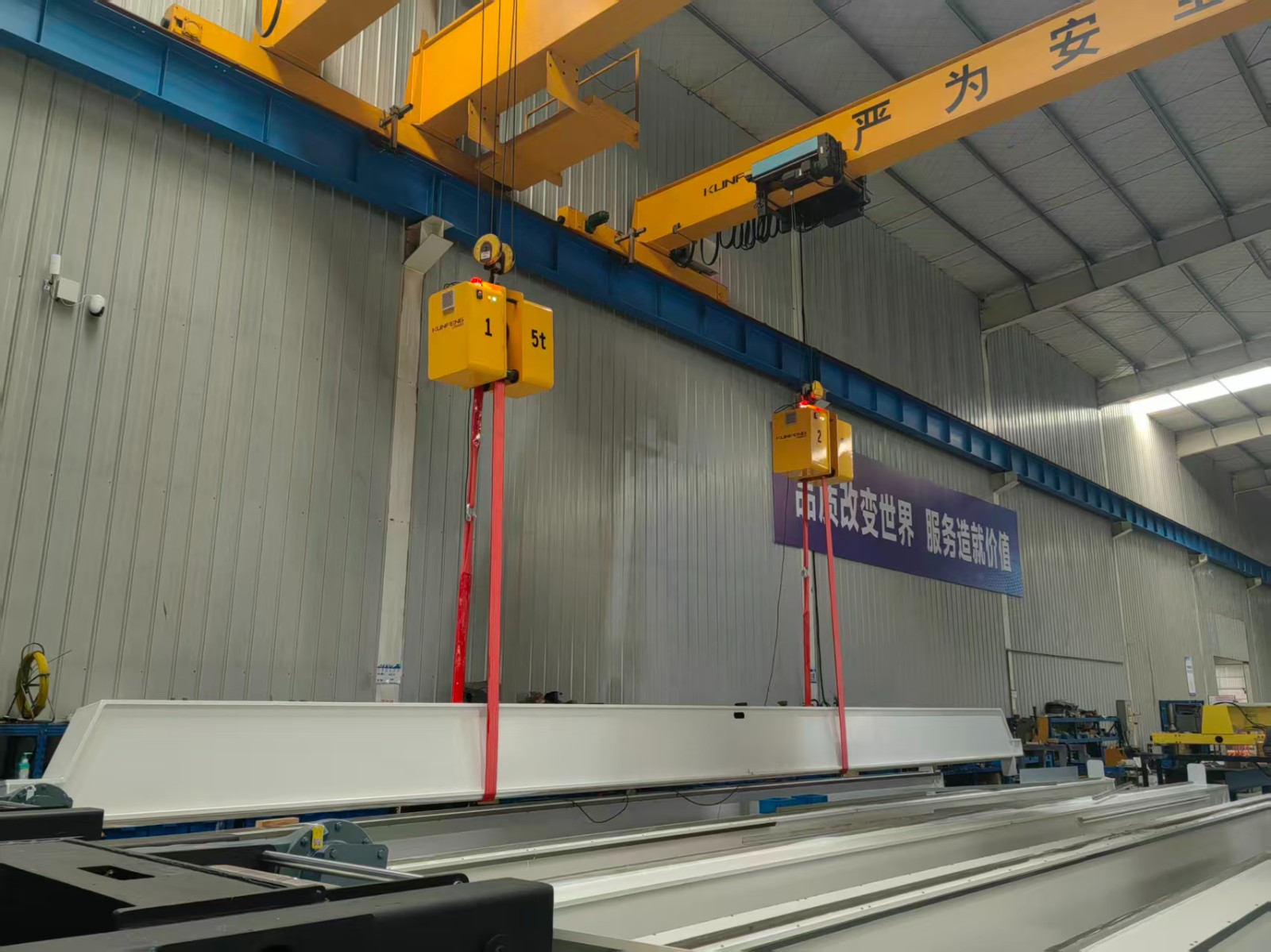

In the manufacturing of structural steel and production of heavy equipment, workpiece flipping is an indispensable key process. A rotating spreader beam is a special lifting attachment mounted on crane, which integrates a rotating mechanism to adjust the angle or flip the suspended structural steel in mid-air. It is widely used in integrated lifting and rotating operations for steel plates, H-beams, box girders and large welded components, significantly improving production efficiency.
Main Working Principle of Structural Steel Rotating Spreader Beam
Driven by an electric power unit, the lifting attachment rotates around its central axis, enabling the structural steel to be flipped or positioned within a 0° - 360° range in mid-air.
During flipping, rational load distribution automatically adjusts the center of gravity, avoiding overturning risks caused by eccentric loading and ensuring smooth flipping. The spreader beam is generally designed with high-strength steel to guarantee overall stability and safety.
The rotating spreader beam is equipped with wireless remote control for synchronous operation, ensuring a controllable and stable flipping process and preventing impact loads and misoperation risks.
Practical Applications of Structural Steel Flipping
Flipping of H-beams and Box Girders: In structural steel production lines, workpieces need to be flipped from one welding surface to the other for continuous processing. The rotating spreader beam enables precise flipping and positioning, improving welding quality.
Handling of Large Steel Plates and Profiles: In steel mills and warehouse logistics, the rotating spreader beam can lift steel plates and adjust their orientation.
Shipbuilding and Bridge Construction: For long and heavy components, the rotating spreader beam can complete flipping in confined spaces, reducing the need for auxiliary equipment.
Technical Advantages of the Rotating Spreader Beam
Integrates lifting and flipping functions, reducing repeated lifting procedures.
Supports multi-angle flipping, suitable for irregular structural steel components.
Works with overhead crane for quick production deployment.
Eliminates manual flipping assistance, lowering accident risks.
Can be custom designed according to parameters such as load capacity, span and flipping angle.
Selection and Application Recommendations
Rated load capacity (1t - 50t)
Flipping angle range (90° / 180° / 360°)
Drive mode (electric or hydraulic)
Control method (manual / remote control)
Lifting sling options (chain or high strength synthetic belt)
As a key piece of equipment in the field of structural steel flipping, rotating spreader beam is continuously driving the upgrading of industrial manufacturing toward automation, higher efficiency and enhanced safety. KUNFENG is a professional manufacturer with extensive industry experience and strong custom design capabilities. If you are looking for high performance rotating spreader beams or structural steel turning solutions, please feel free to contact us for professional technical support and product quotations.
